GD300FFX65P3S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 6μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

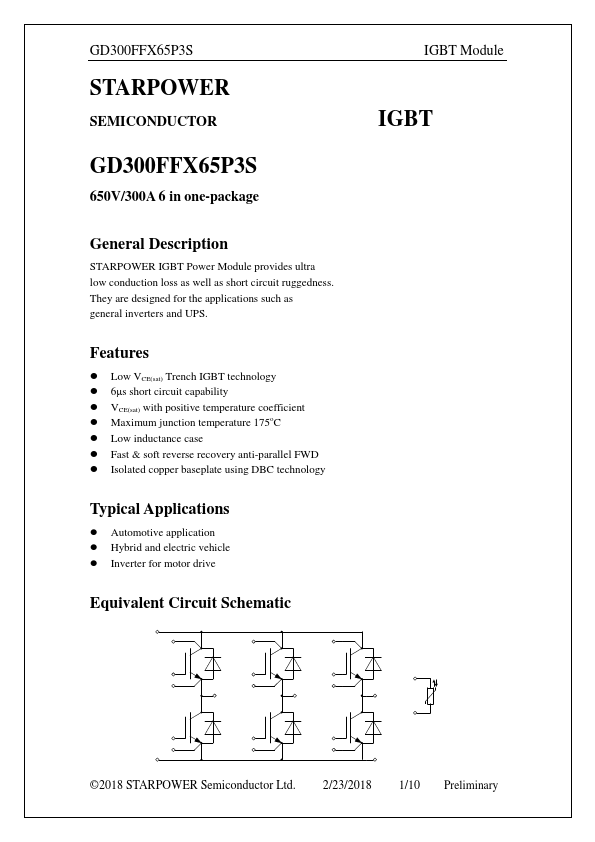

Datasheet preview – GD300FFX65P3S

Datasheet Details

Part number GD300FFX65P3S
Manufacturer STARPOWER
File Size 206.52 KB
Description IGBT
Datasheet download datasheet GD300FFX65P3S Datasheet

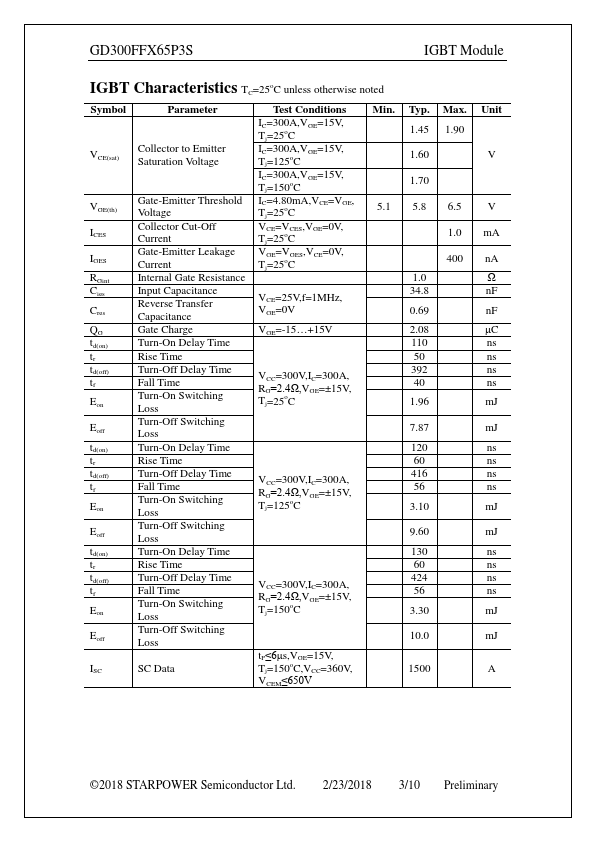

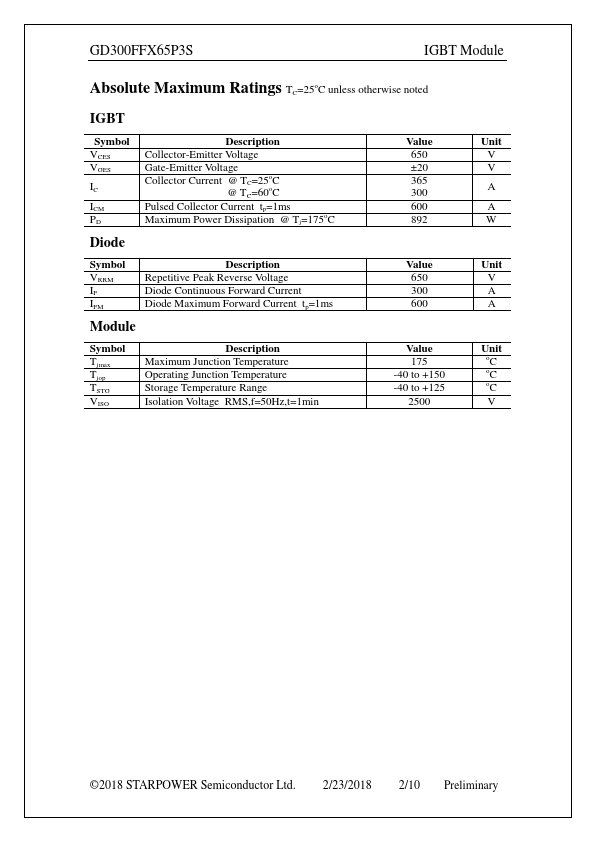

Additional preview pages of the GD300FFX65P3S datasheet.

📁 Similar Datasheet

Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text
GD300FFX65P3S STARPOWER SEMICONDUCTOR GD300FFX65P3S 650V/300A 6 in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  6μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Automotive application  Hybrid and electric vehicle  Inverter for motor drive Equivalent Circuit Schematic IGBT Module IGBT ©2018 STARPOWER Semiconductor Ltd.
