GD300HFK120C2S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction and switching loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • NPT IGBT technology.
  • Low switching loss.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Equivalent Circuit Schematic Typical.

📥 Download Datasheet

Datasheet preview – GD300HFK120C2S

Datasheet Details

Part number GD300HFK120C2S
Manufacturer STARPOWER
File Size 249.14 KB
Description IGBT
Datasheet download datasheet GD300HFK120C2S Datasheet

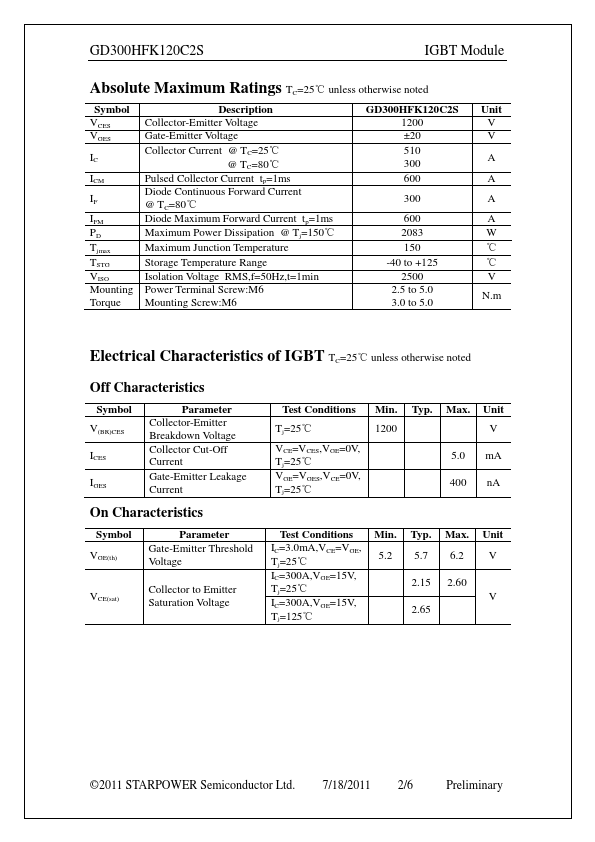

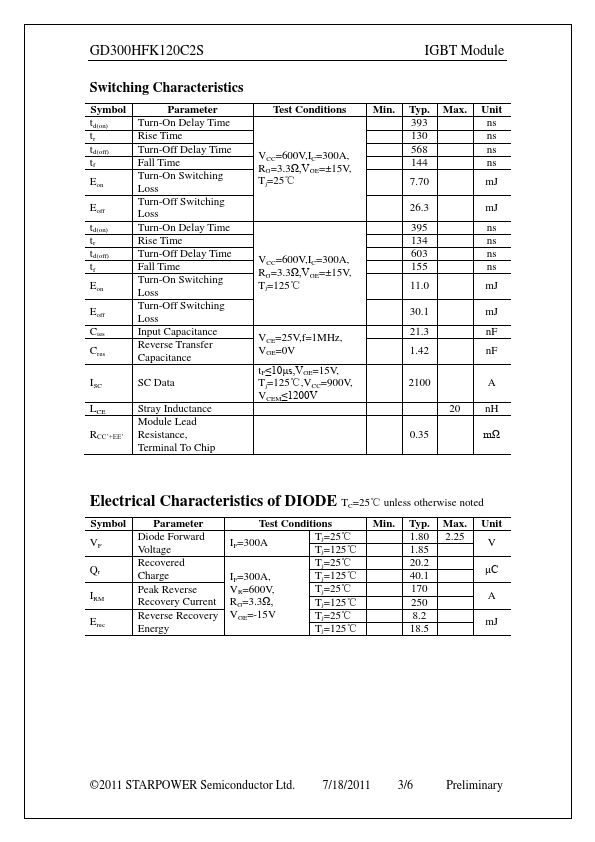

Additional preview pages of the GD300HFK120C2S datasheet.

📁 Similar Datasheet

Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text

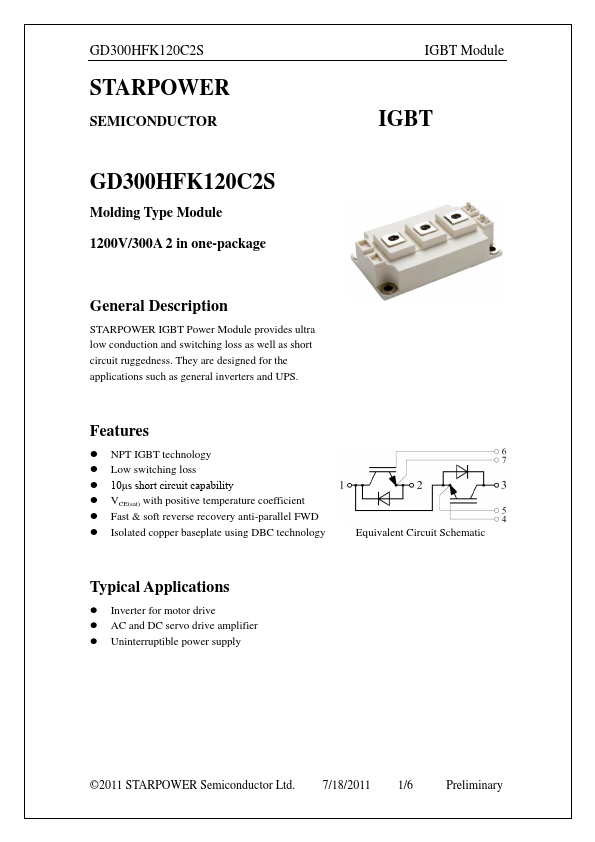

GD300HFK120C2S STARPOWER SEMICONDUCTOR GD300HFK120C2S Molding Type Module 1200V/300A 2 in one-package IGBT Module IGBT General Description STARPOWER IGBT Power Module provides ultra low conduction and switching loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  NPT IGBT technology  Low switching loss  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Equivalent Circuit Schematic Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply ©2011 STARPOWER Semiconductor Ltd.
