GD300HFL170C2S - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

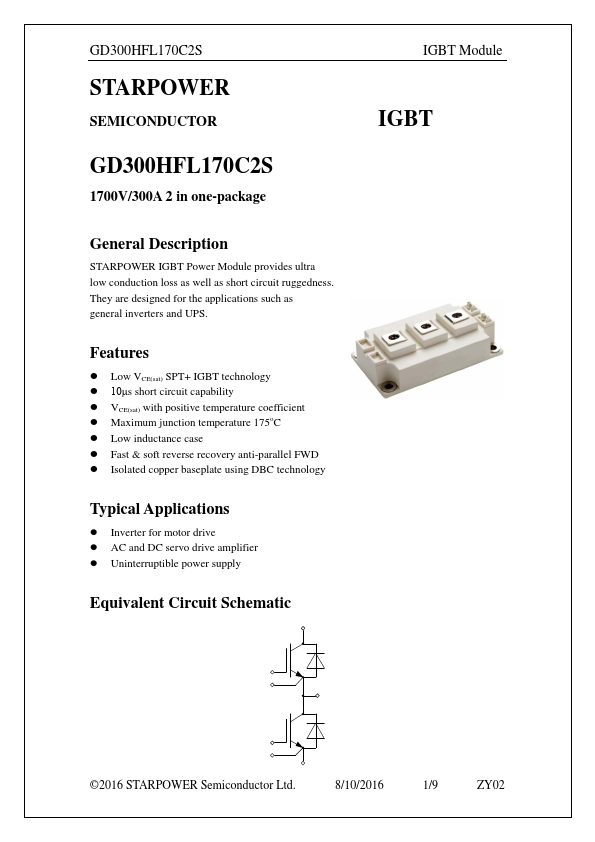

GD300HFL170C2S IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD300HFL170C2S

Datasheet Details

Part number	GD300HFL170C2S
Manufacturer	STARPOWER
File Size	380.34 KB
Description	IGBT
Datasheet	GD300HFL170C2S Datasheet

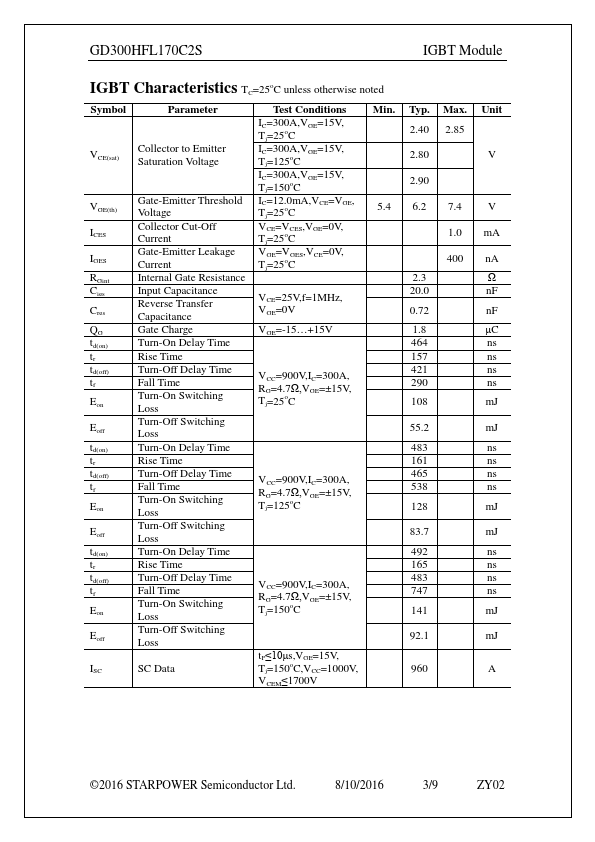

Additional preview pages of the GD300HFL170C2S datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) SPT+ IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
