GD300HFQ120C2S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as electronic welder and inductive heating.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

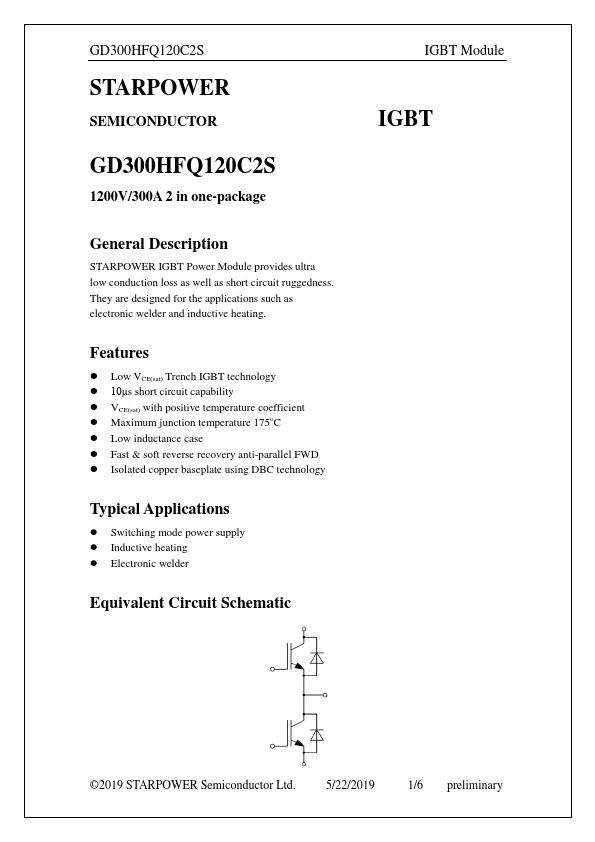

Datasheet preview – GD300HFQ120C2S

Datasheet Details

Part number GD300HFQ120C2S
Manufacturer STARPOWER
File Size 125.69 KB
Description IGBT
Datasheet download datasheet GD300HFQ120C2S Datasheet

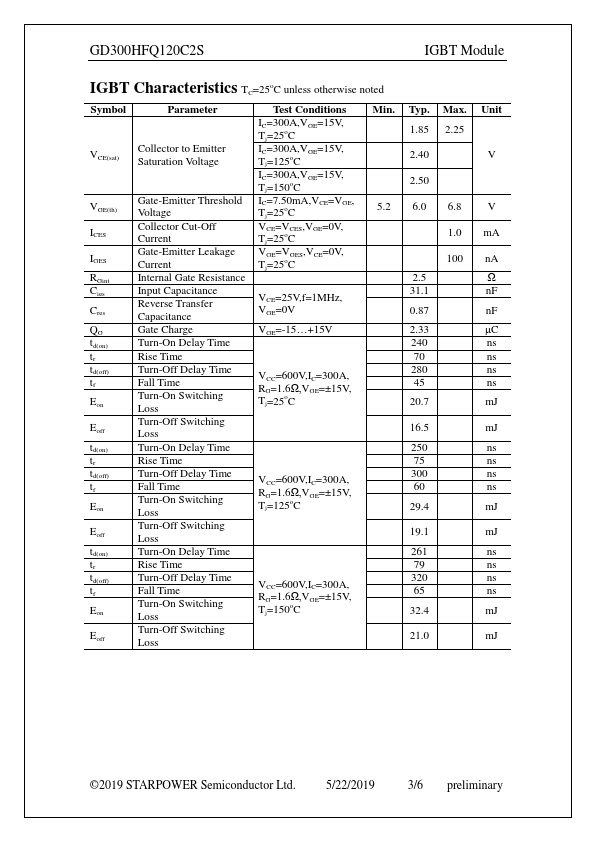

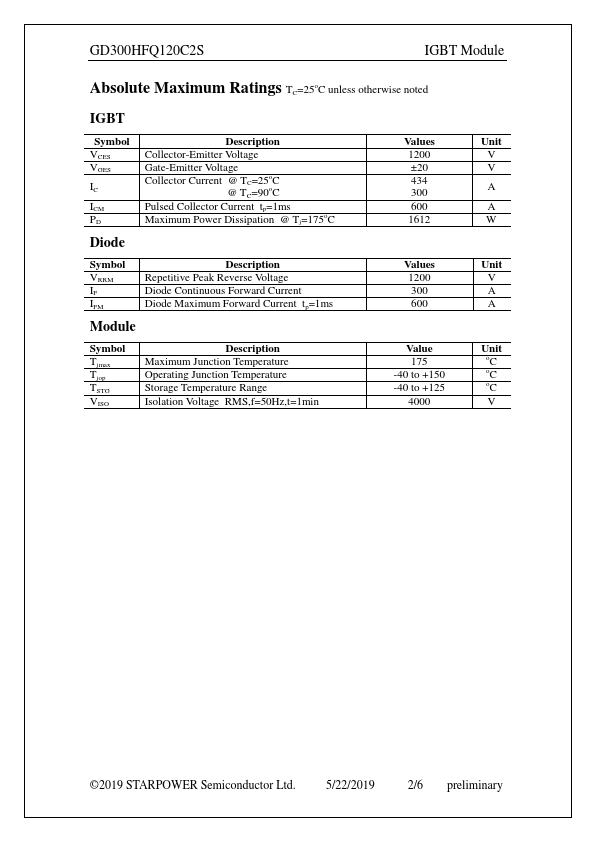

Additional preview pages of the GD300HFQ120C2S datasheet.

📁 Similar Datasheet

Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text
GD300HFQ120C2S STARPOWER SEMICONDUCTOR GD300HFQ120C2S 1200V/300A 2 in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as electronic welder and inductive heating. Features  Low VCE(sat) Trench IGBT technology  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Switching mode power supply  Inductive heating  Electronic welder Equivalent Circuit Schematic IGBT Module IGBT ©2019 STARPOWER Semiconductor Ltd.
