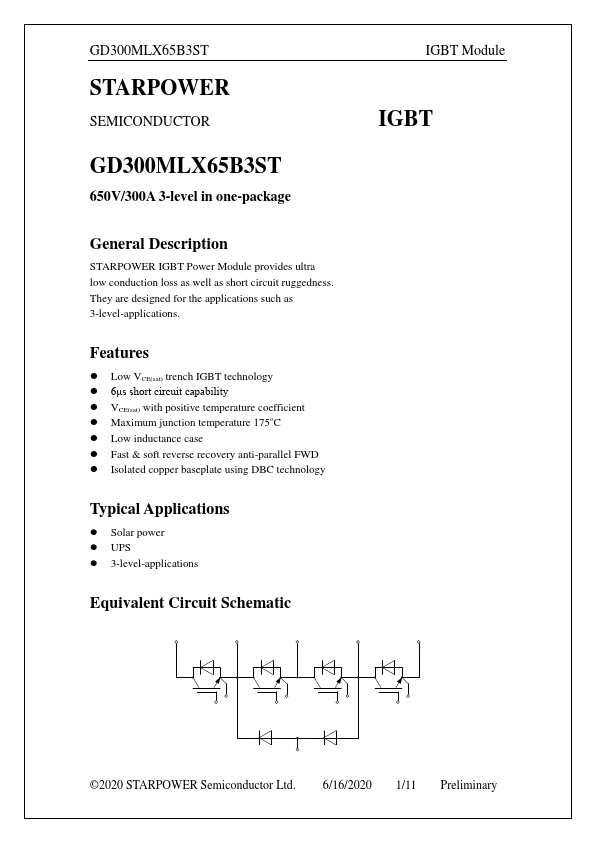

GD300MLX65B3ST
Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as 3-level-applications.
Features
- Low VCE(sat) trench IGBT technology
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175o C
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications
- Solar power
- UPS
- 3-level-applications
Equivalent Circuit Schematic
IGBT Module
IGBT
©2020 STARPOWER Semiconductor Ltd. 6/16/2020 1/11 Preliminary

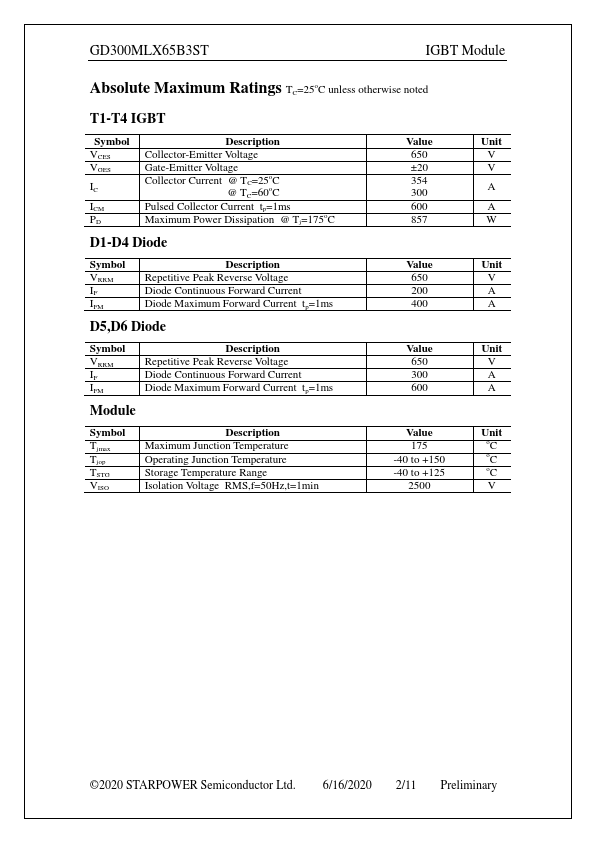

IGBT Module
Absolute Maximum Ratings TC=25o C unless otherwise noted
T1-T4 IGBT
Symbol VCES VGES
ICM PD
Description
Collector-Emitter Voltage
Gate-Emitter Voltage Collector Current @ TC=25o C
@ TC=60o C
Pulsed Collector Current tp=1ms Maximum Power Dissipation @ Tj=175o C
D1-D4 Diode
Symbol VRRM IF IFM
Description
Repetitive Peak...
