GD400HFQ120C2S Datasheet - STARPOWER

GD400HFQ120C2S, IGBT

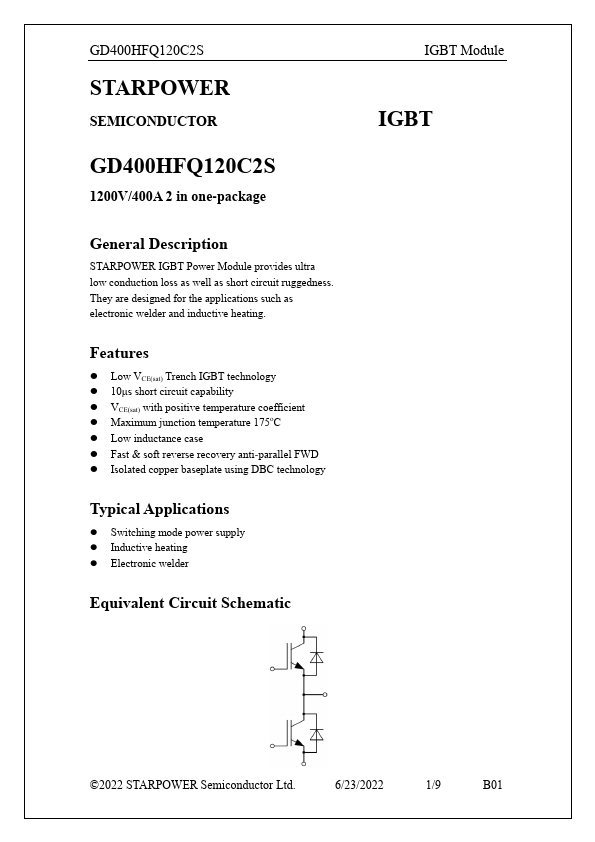

GD400HFQ120C2S STARPOWER SEMICONDUCTOR GD400HFQ120C2S 1200V/400A 2 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

datasheet Preview Page 1 from Datasheet4u.com

GD400HFQ120C2S-STARPOWER.pdf

GD400HFQ120C2S Datasheet Preview — Preview of GD400HFQ120C2S PDF

Datasheet Details

Part number:

GD400HFQ120C2S

Manufacturer:

STARPOWER

File Size:

342.94 KB

Description:

IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
