GD400HFX65C2S IGBT

STARPOWER

Description

GD400HFX65C2S STARPOWER SEMICONDUCTOR GD400HFX65C2S 650V/400A 2 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

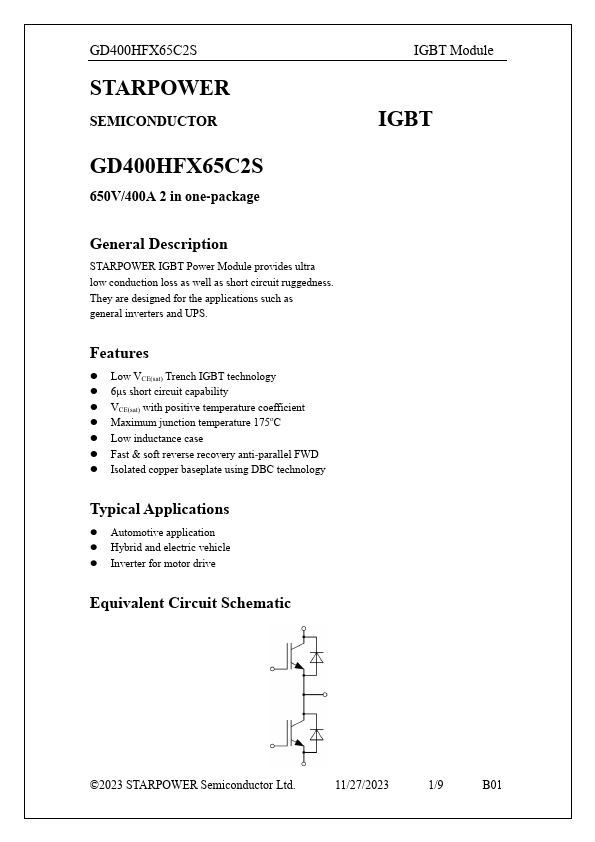

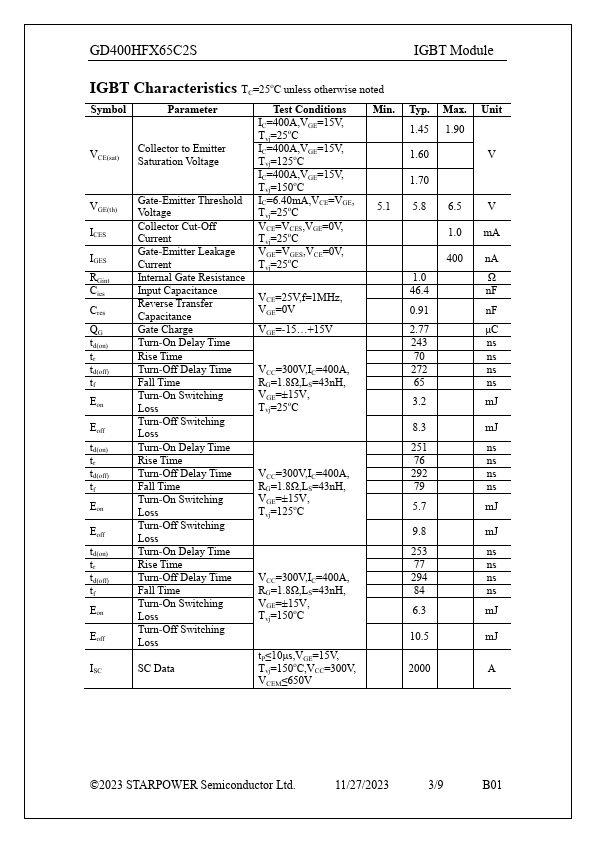

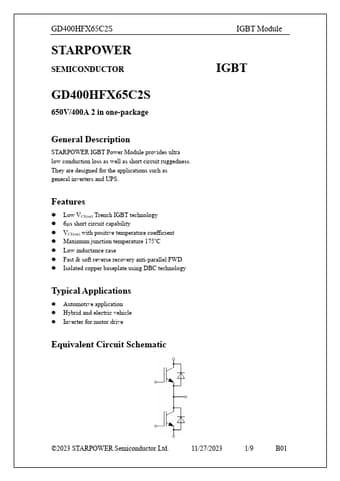

GD400HFX65C2S Datasheet Preview — Preview of GD400HFX65C2S PDF

Datasheet Specifications

Part number: GD400HFX65C2S
Manufacturer: STARPOWER
File Size: 429.29 KB
Datasheet: GD400HFX65C2S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technolo
