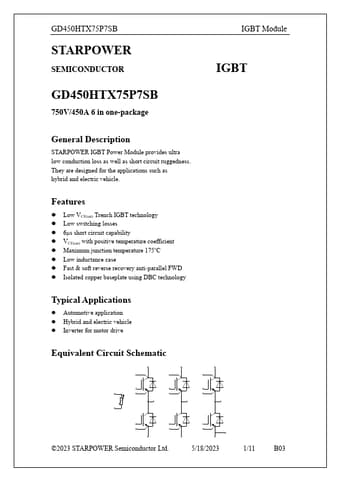

GD450HTX75P7SB
Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as hybrid and electric vehicle.
Features
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175o C
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive
Equivalent Circuit Schematic
IGBT Module
IGBT
©2023 STARPOWER Semiconductor Ltd.
5/18/2023
1/11
B03
IGBT Module
Absolute Maximum Ratings TC=25o C unless otherwise noted
IGBT
Symbol VCES VGES ICN IC ICM
Description
Collector-Emitter Voltage
Gate-Emitter Voltage
Implemented Collector Current Collector Current @ TC=120o C Pulsed Collector Current tp=1ms Maximum Power...
