GD50FFX120C5S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 10μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

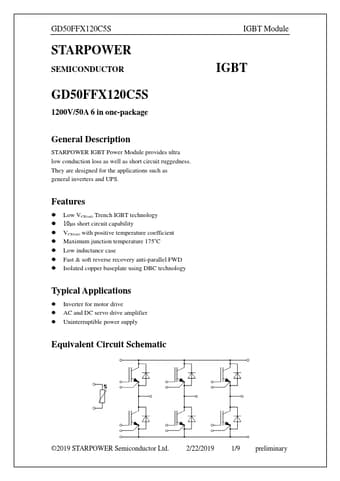

Datasheet preview – GD50FFX120C5S

Datasheet Details

Part number GD50FFX120C5S
Manufacturer STARPOWER
File Size 351.38 KB
Description IGBT
Datasheet download datasheet GD50FFX120C5S Datasheet
Additional preview pages of the GD50FFX120C5S datasheet.

📁 Similar Datasheet

  • GD500SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD501SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD50MLXD-GTI056TN52 - LCD (DALIAN GOOD DISPLAY)
  • GD50MPS12H - Silicon Carbide Schottky Diode (GeneSiC)
  • GD511 - SWITCHING DIODE (GTM)
  • GD54HC00 - QUAD 2-INPUT NAND GATES (ETC)
  • GD54HC113 - DUAL J-K FLIP-FLOP (ETC)
  • GD54HC133 - 13-INPUT NAND GATE (ETC)
  • GD54HC148 - 8-TO-3 LINE PRIORITY ENCODER (ETC)
  • GD54HC155 - DUAL 2-TO-4 LINE DECODERS/DEMULTIPLEXERS (ETC)
Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text
GD50FFX120C5S STARPOWER SEMICONDUCTOR GD50FFX120C5S 1200V/50A 6 in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply Equivalent Circuit Schematic IGBT Module IGBT ©2019 STARPOWER Semiconductor Ltd.
