GD50FFX65C5S - IGBT

STARPOWER

📥 Download Datasheet

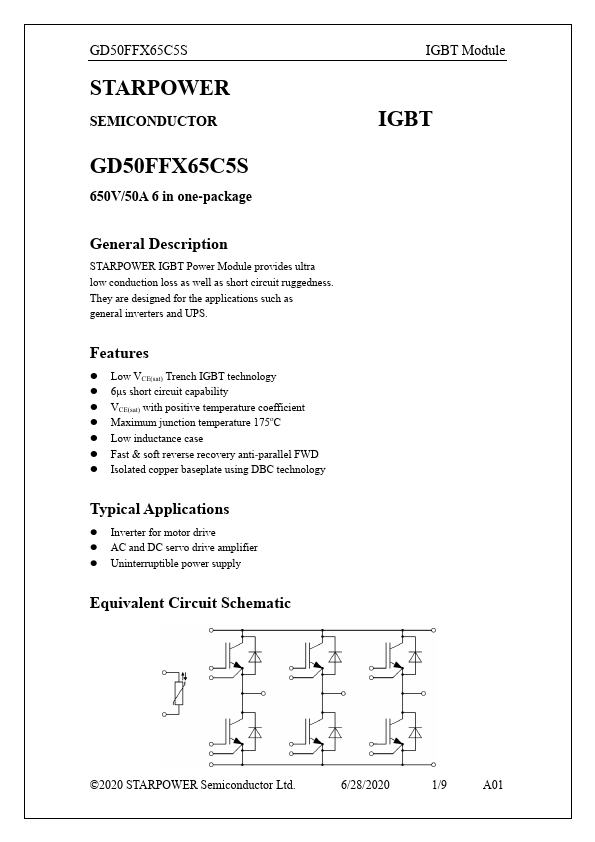

GD50FFX65C5S Datasheet Preview — Preview of GD50FFX65C5S PDF

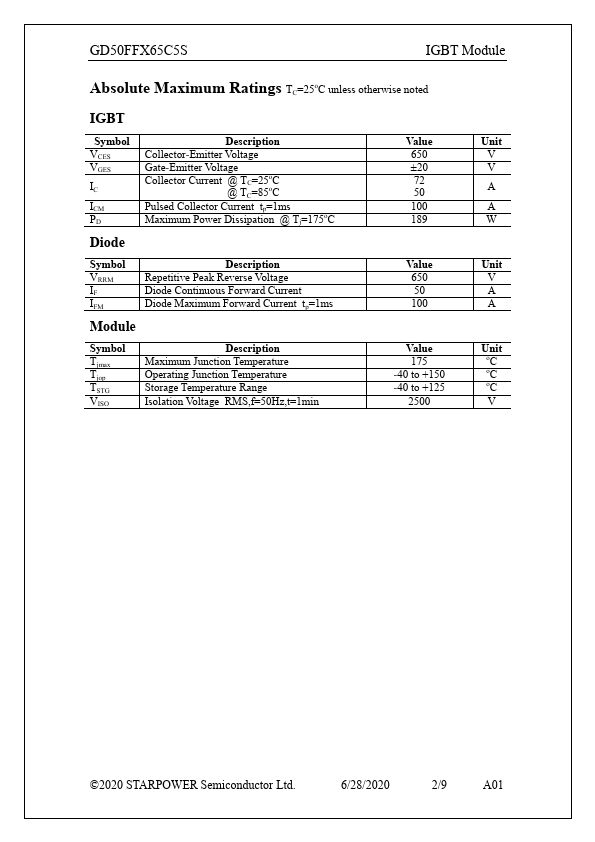

datasheet Preview Page 2

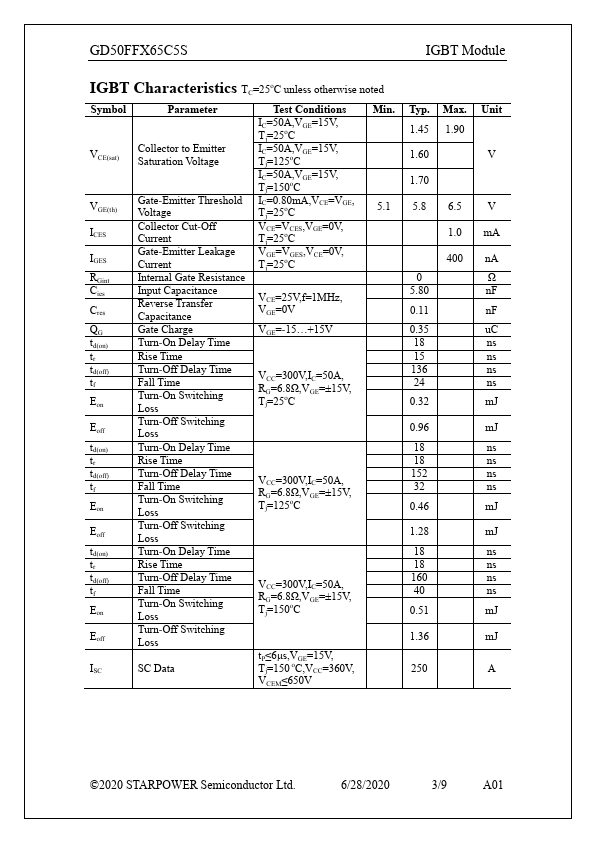

datasheet Preview Page 3

Datasheet Details

Part number	GD50FFX65C5S
Manufacturer	STARPOWER
File Size	499.14 KB
Description	IGBT
Datasheet	GD50FFX65C5S-STARPOWER.pdf

GD50FFX65C5S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
