GD50FSA120L2SF - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 8μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated heatsink using DBC technology.
  • PressFIT contact technology Typical.

📥 Download Datasheet

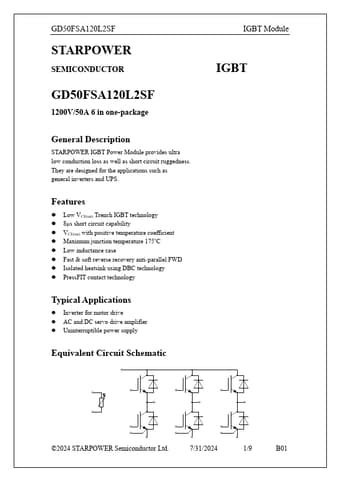

Datasheet preview – GD50FSA120L2SF

Datasheet Details

Part number GD50FSA120L2SF
Manufacturer STARPOWER
File Size 515.17 KB
Description IGBT
Datasheet download datasheet GD50FSA120L2SF Datasheet
Additional preview pages of the GD50FSA120L2SF datasheet.

📁 Similar Datasheet

  • GD500SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD501SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE (GTM)
  • GD50MLXD-GTI056TN52 - LCD (DALIAN GOOD DISPLAY)
  • GD50MPS12H - Silicon Carbide Schottky Diode (GeneSiC)
  • GD511 - SWITCHING DIODE (GTM)
  • GD54HC00 - QUAD 2-INPUT NAND GATES (ETC)
  • GD54HC113 - DUAL J-K FLIP-FLOP (ETC)
  • GD54HC133 - 13-INPUT NAND GATE (ETC)
  • GD54HC148 - 8-TO-3 LINE PRIORITY ENCODER (ETC)
  • GD54HC155 - DUAL 2-TO-4 LINE DECODERS/DEMULTIPLEXERS (ETC)
Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text
GD50FSA120L2SF STARPOWER SEMICONDUCTOR GD50FSA120L2SF 1200V/50A 6 in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  8μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated heatsink using DBC technology  PressFIT contact technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply Equivalent Circuit Schematic IGBT Module IGBT ©2024 STARPOWER Semiconductor Ltd.
