GD50FSA120L2SMF - IGBT

STARPOWER

📥 Download Datasheet

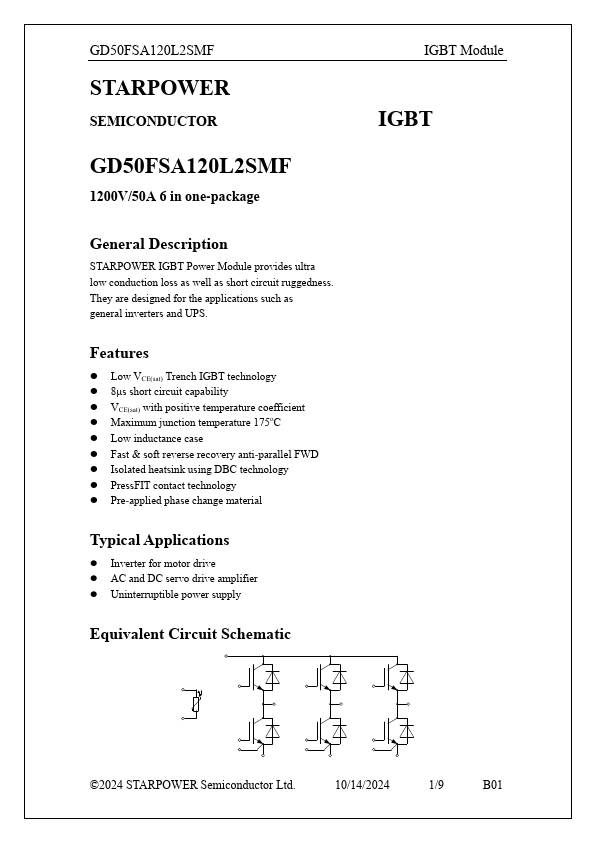

GD50FSA120L2SMF Datasheet Preview — Preview of GD50FSA120L2SMF PDF

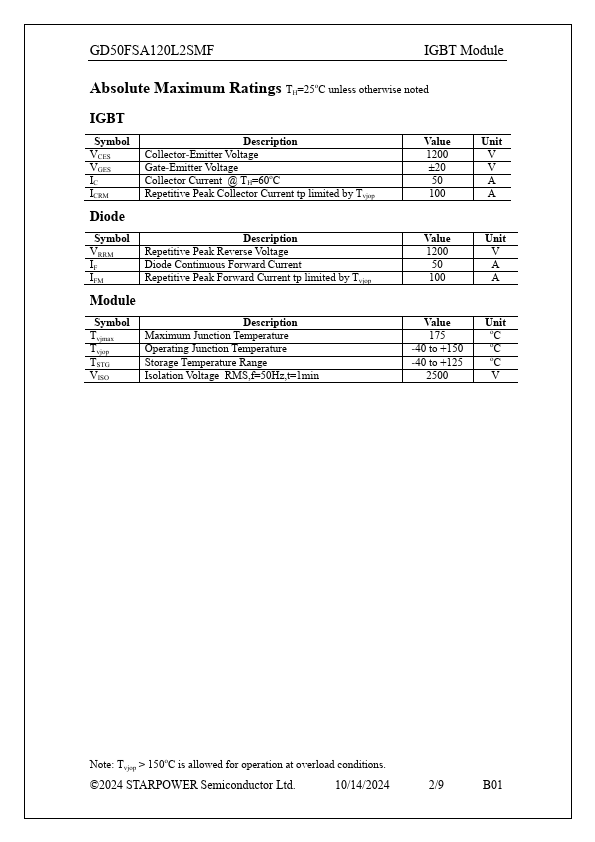

datasheet Preview Page 2

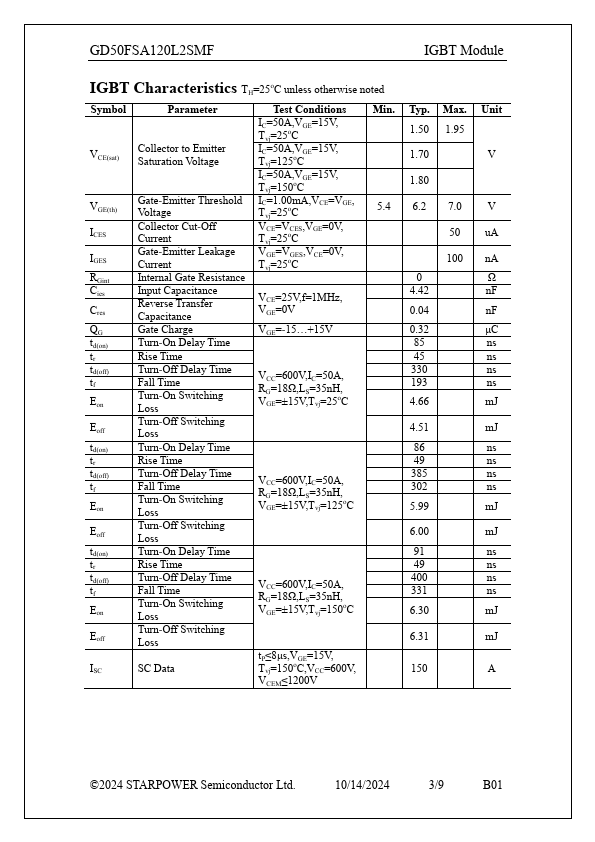

datasheet Preview Page 3

Datasheet Details

Part number	GD50FSA120L2SMF
Manufacturer	STARPOWER
File Size	558.17 KB
Description	IGBT
Datasheet	GD50FSA120L2SMF-STARPOWER.pdf

GD50FSA120L2SMF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
8μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated heatsink using DBC technology.
PressFIT contact technology.
Pre-applied phase change material Typical.
