GD50HFT120C1S_T4 - IGBT

STARPOWER

📥 Download Datasheet

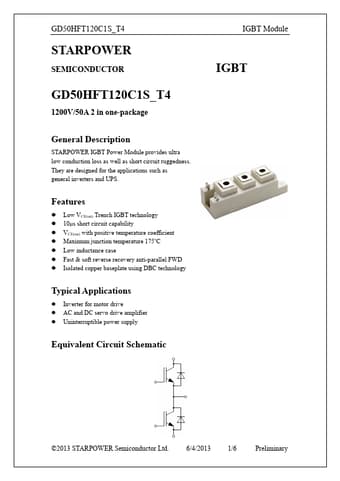

GD50HFT120C1S_T4 Datasheet Preview — Preview of GD50HFT120C1S_T4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GD50HFT120C1S_T4
Manufacturer	STARPOWER
File Size	292.60 KB
Description	IGBT
Datasheet	GD50HFT120C1S_T4-STARPOWER.pdf

GD50HFT120C1S_T4 Product details

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
