GD50PIT120C5SN - IGBT

STARPOWER

📥 Download Datasheet

GD50PIT120C5SN Datasheet Preview — Preview of GD50PIT120C5SN PDF

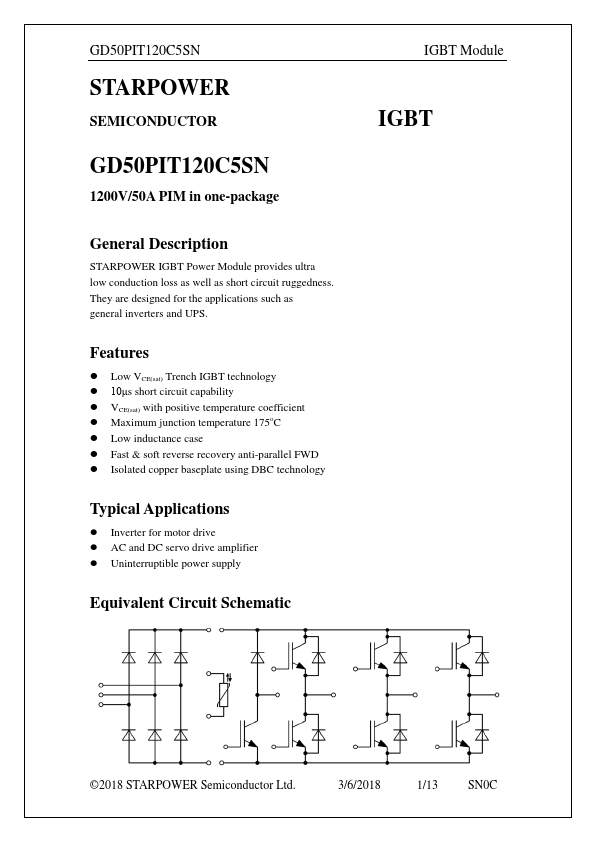

datasheet Preview Page 2

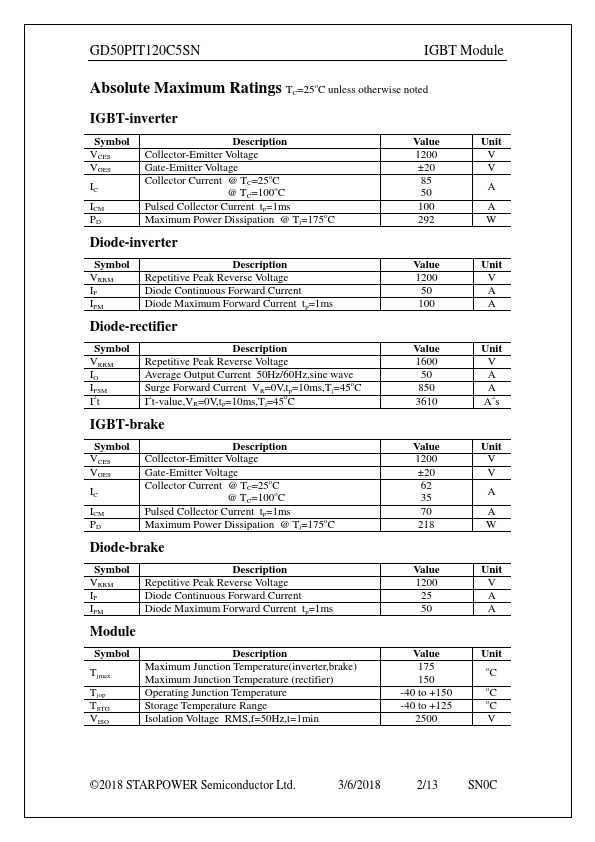

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIT120C5SN
Manufacturer	STARPOWER
File Size	508.53 KB
Description	IGBT
Datasheet	GD50PIT120C5SN-STARPOWER.pdf

GD50PIT120C5SN Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
