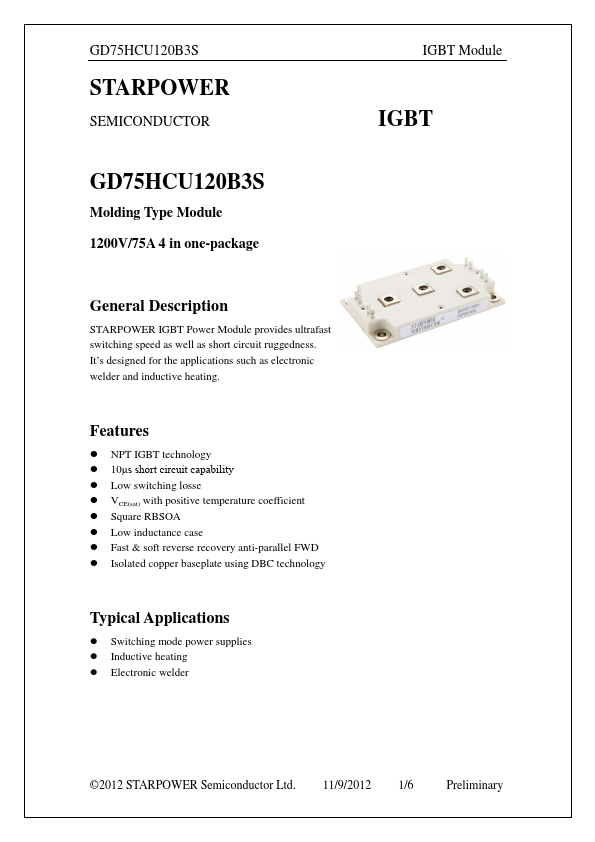

GD75HCU120B3S
Description
STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness. It’s designed for the applications such as electronic welder and inductive heating.
Features
- NPT IGBT technology
- 10μs short circuit capability
- Low switching losse
- VCE(sat) with positive temperature coefficient
- Square RBSOA
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications
- Switching mode power supplies
- Inductive heating
- Electronic welder
©2012 STARPOWER Semiconductor Ltd. 11/9/2012 1/6
Preliminary
IGBT Module

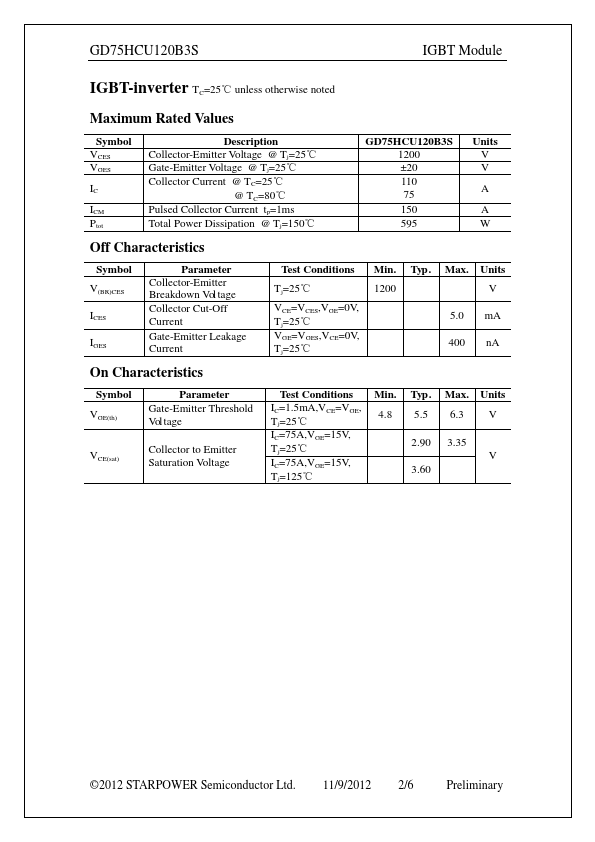

IGBT-inverter TC=25℃ unless otherwise noted
Maximum Rated Values
Symbol VCES VGES
ICM Ptot
Description
Collector-Emitter Voltage @ Tj=25℃ Gate-Emitter Voltage @ Tj=25℃ Collector Current @ TC=25℃
@ TC=80℃ Pulsed Collector Current tp=1ms Total Power Dissipation @ Tj=150℃
GD75HCU120B3S 1200 ±20
110 75
150 595
Units V V
Off...
