GD75HFY120C1S - IGBT

STARPOWER

📥 Download Datasheet

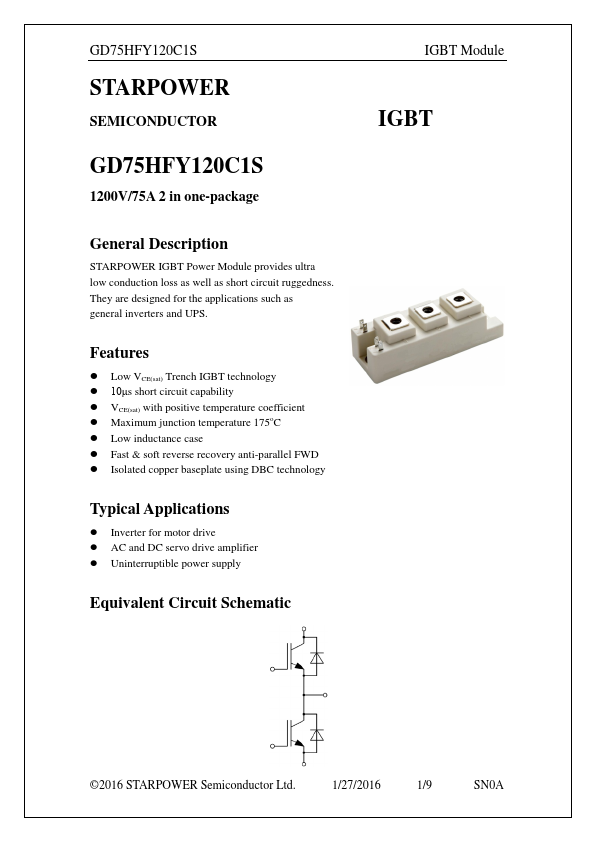

GD75HFY120C1S Datasheet Preview — Preview of GD75HFY120C1S PDF

datasheet Preview Page 2

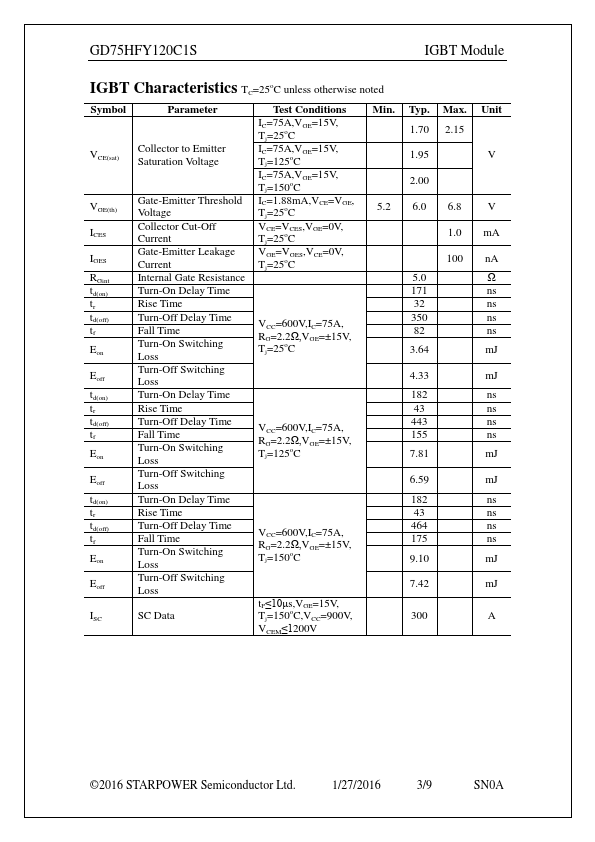

datasheet Preview Page 3

Datasheet Details

Part number	GD75HFY120C1S
Manufacturer	STARPOWER
File Size	200.90 KB
Description	IGBT
Datasheet	GD75HFY120C1S-STARPOWER.pdf

GD75HFY120C1S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
