GD800HFX170C3S - IGBT

STARPOWER

📥 Download Datasheet

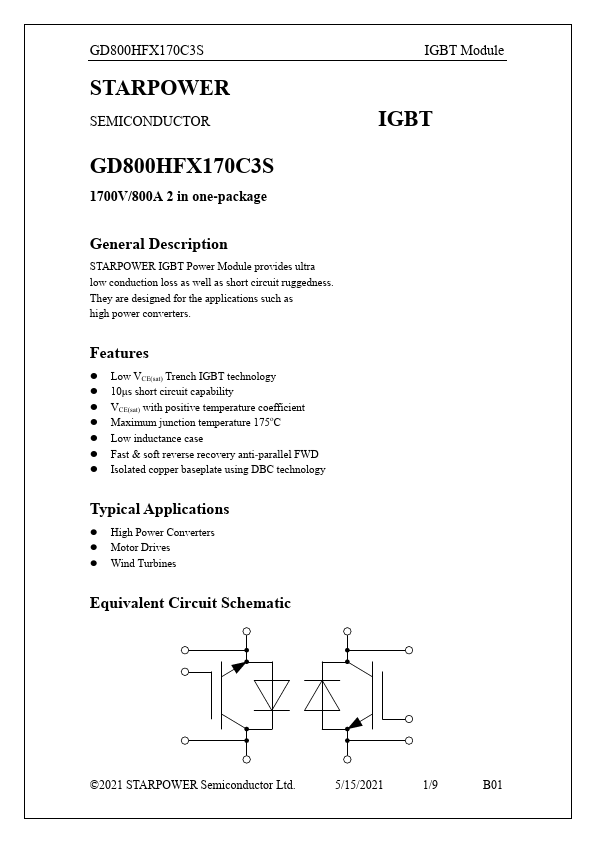

GD800HFX170C3S Datasheet Preview — Preview of GD800HFX170C3S PDF

datasheet Preview Page 2

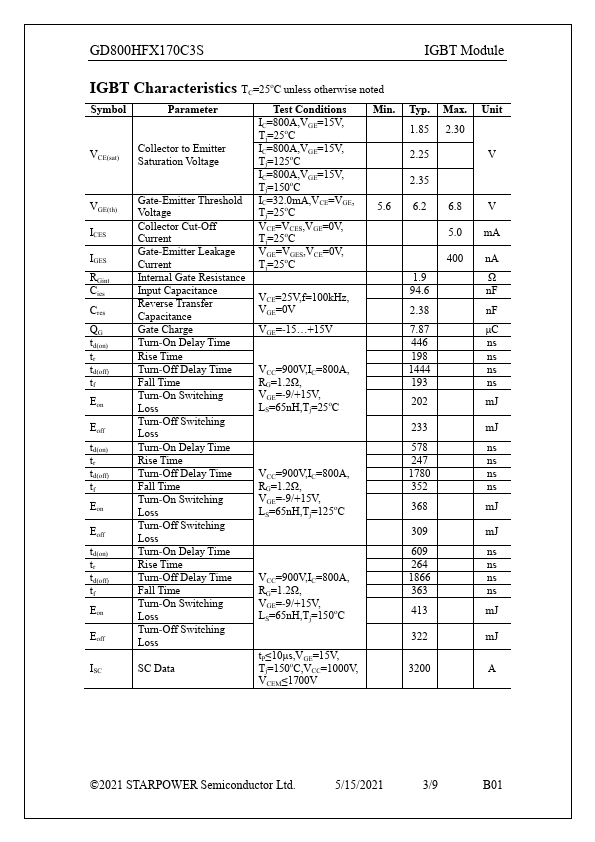

datasheet Preview Page 3

Datasheet Details

Part number	GD800HFX170C3S
Manufacturer	STARPOWER
File Size	321.09 KB
Description	IGBT
Datasheet	GD800HFX170C3S-STARPOWER.pdf

GD800HFX170C3S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
