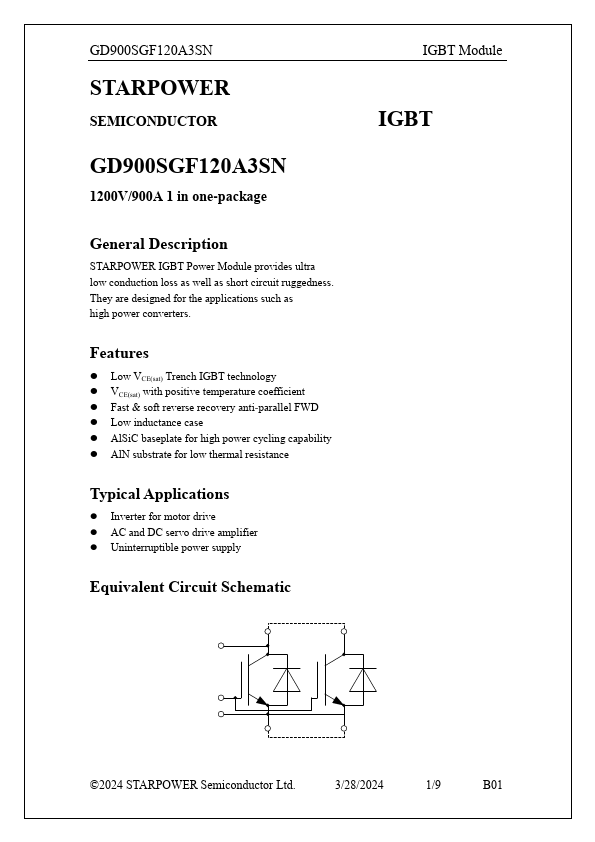

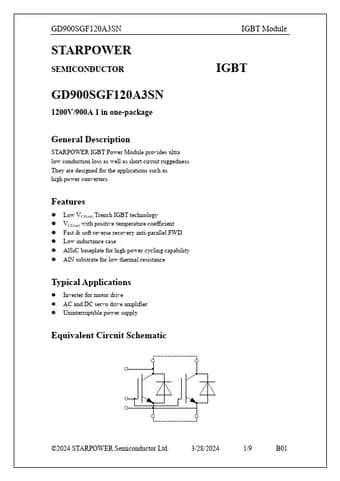

GD900SGF120A3SN
Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as high power converters.
Features
- Low VCE(sat) Trench IGBT technology
- VCE(sat) with positive temperature coefficient
- Fast & soft reverse recovery anti-parallel FWD
- Low inductance case
- Al Si C baseplate for high power cycling capability
- Al N substrate for low thermal resistance
Typical Applications
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply
Equivalent Circuit Schematic
IGBT Module
IGBT
©2024 STARPOWER Semiconductor Ltd.
3/28/2024
1/9
B01
IGBT Module

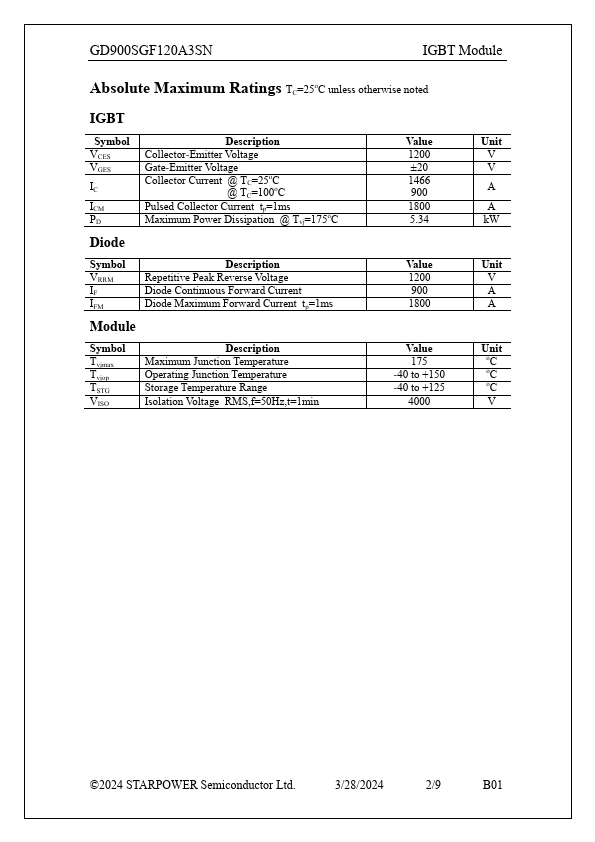

Absolute Maximum Ratings TC=25o C unless otherwise noted
IGBT
Symbol VCES VGES
ICM PD
Description
Collector-Emitter Voltage
Gate-Emitter Voltage Collector Current @ TC=25o C
@ TC=100o C
Pulsed Collector Current tp=1ms Maximum Power Dissipation @ Tvj=175o C
Diode
Symbol VRRM IF IFM
Description
Repetitiv...
