78L10A, 78L05A fixed-voltage monolithic integrated-circuit voltage regulators

78L10A Description

） 78LXX .
This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications.

78L10A Features

* of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, an effective improvemen in output impedance can be obtained together with lower-bias current. Features
* 3-Terminal Regulators
* Output Current Up to 100 mA

78L10A Applications

* These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. Each of these regulators can deliver up to100 mA of output curren

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 78L10A, 78L05A. Please refer to the document for exact specifications by model.

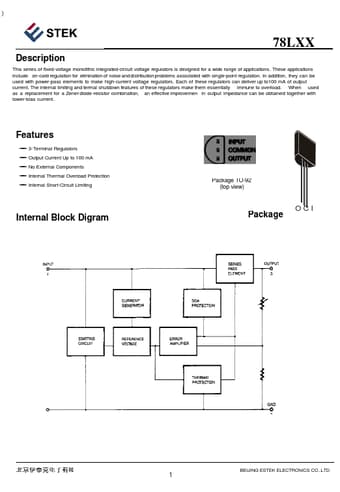

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
78L10A, 78L05A
Manufacturer
STEK
File Size
306.79 KB
Datasheet
78L05A-STEK.pdf
Description
fixed-voltage monolithic integrated-circuit voltage regulators
Note
This datasheet PDF includes multiple part numbers: 78L10A, 78L05A.
Please refer to the document for exact specifications by model.
