1N5822 - LOW DROP POWER SCHOTTKY RECTIFIER

Download the 1N5822 datasheet PDF. This datasheet also covers the 1N5820 variant, as both devices belong to the same low drop power schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters.

Packaged in DO-201AD these devices are intended for use in low voltage, high frequency inverters, free wheeling, polarity protection and small battery chargers.

Features

  • n VERY SMALL.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5820-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N5822 Power Diodes Multicomp
1N5822 SCHOTTKY BARRIER RECTIFIER Kingtronics
1N5822 Schottky Barrier Rectifiers LRC
1N5822 3.0 Amp. Schottky Barrier Rectifiers JGD
1N5822 SCHOTTKY BARRIER RECTIFIER Zowie Technology Corporation

Other Datasheets by STMicroelectronics

Part Number Description
1N5820 LOW DROP POWER SCHOTTKY RECTIFIER
1N5821 LOW DROP POWER SCHOTTKY RECTIFIER
1N582X LOW DROP POWER SCHOTTKY RECTIFIER
1N582xRL LOW DROP POWER SCHOTTKY RECTIFIER
1N5817 Low drop power Schottky rectifier

Full PDF Text Transcription

Click to expand full text

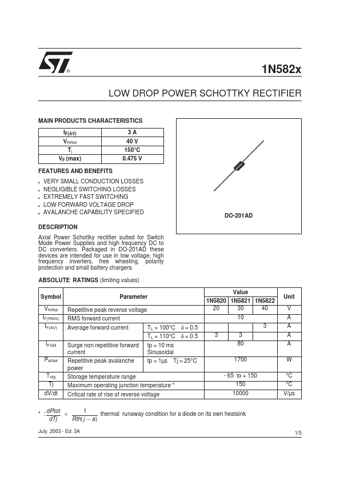

® 1N582x LOW DROP POWER SCHOTTKY RECTIFIER MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj VF (max) 3A 40 V 150°C 0.475 V FEATURES AND BENEFITS n VERY SMALL CONDUCTION LOSSES n NEGLIGIBLE SWITCHING LOSSES n EXTREMELY FAST SWITCHING n LOW FORWARD VOLTAGE DROP n AVALANCHE CAPABILITY SPECIFIED DESCRIPTION Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-201AD these devices are intended for use in low voltage, high frequency inverters, free wheeling, polarity protection and small battery chargers. DO-201AD ABSOLUTE RATINGS (limiting values) Symbol Parameter VRRM IF(RMS) IF(AV) IFSM PARM Tstg Tj dV/dt Repetitive peak reverse voltage RMS forward current Average forward current TL = 100°C δ = 0.
