24c02 - 1-Kbit and 2-Kbit serial I2C bus EEPROM

Datasheet Summary

Description

Features

Compatible with I2C bus modes:.
400 kHz.
100 kHz.
Memory array:.
1 Kbit (128 bytes) of EEPROM.
2 Kbit (256 bytes) of EEPROM.
Page size: 16 byte.
Single supply voltage:.
M24C01/02-W: 2.5 V to 5.5 V.
M24C01/02-R: 1.8 V to 5.5 V.
M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range).
Write:.
Byte Write within 5 ms.
Page Write withi.

Datasheet Details

Part number	24c02
Manufacturer	STMicroelectronics
File Size	735.96 KB
Description	1-Kbit and 2-Kbit serial I2C bus EEPROM
Datasheet	24c02 Datasheet
Additional preview pages of the 24c02 datasheet.

📁 Similar Datasheet

24C02 - 2-WIRE SERIAL CMOS EEPROM (ISSI)

24C02 - 2-Wire Serial EEPROM (ATMEL)

24C02 - 8-lead SOP and 8-lead TSSOP (Estek Electronics)

24C02 - 1K/2K ELECTRICALLY ERASABLE PROGRAMMABLE ROM (Turbo IC)

24C02 - 2-WIRE SERIAL CMOS EEPROM (Bookly Micro)

24C021 - CAT24C021 (Catalyst Semiconductor)

24C023 - CAT24C023 (Catalyst Semiconductor)

24C02A - 1K/2K/4K 5.0V I2C Serial EEPROMs (MicrochipTechnology)

24C02B - 1K/2K 5.0V I2C Serial EEPROM (MicrochipTechnology)

24C02C - 2-Kbit 5.0V I2C Serial EEPROM (Microchip)

Full PDF Text Transcription

Click to expand full text

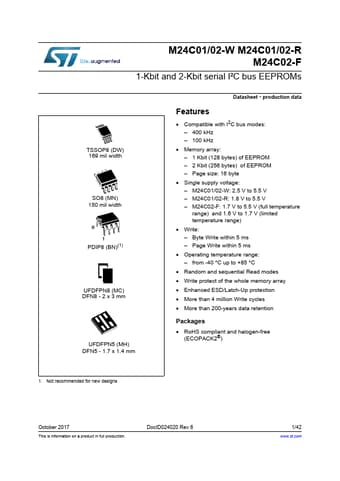

M24C01/02-W M24C01/02-R M24C02-F 1-Kbit and 2-Kbit serial I²C bus EEPROMs TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width PDIP8 (BN)(1) UFDFPN8 (MC) DFN8 - 2 x 3 mm UFDFPN5 (MH) DFN5 - 1.7 x 1.4 mm Datasheet - production data Features • Compatible with I2C bus modes: – 400 kHz – 100 kHz • Memory array: – 1 Kbit (128 bytes) of EEPROM – 2 Kbit (256 bytes) of EEPROM – Page size: 16 byte • Single supply voltage: – M24C01/02-W: 2.5 V to 5.5 V – M24C01/02-R: 1.8 V to 5.5 V – M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.
