2716 - NMOS 128K 16K x 8 UV EPROM

Description

The M2716 is a 16,384 bit UV erasable and electrically programmable memory EPROM, ideally suited for applications where fast turn around and pattern experimentation are important requirements.

The M2716 is housed in a 24 pin Window Ceramic Frit-Seal Dual-in-Line package.

Features

nsition Output.

STMicroelectronics

📥 Download Datasheet

Datasheet Details

Part number	2716
Manufacturer	STMicroelectronics
File Size	103.44 KB
Description	NMOS 128K 16K x 8 UV EPROM
Datasheet	2716 Datasheet
Additional preview pages of the 2716 datasheet.

📁 Similar Datasheet

2716 - 16K UV EPROM (Intel)
2716 - 16K NMOS UV EPROM (Thomson Components)
27128A - 128K Production and UV EPROM (Intel)
2714SD - Dual-Channel MOSFET (ALLPOWER)
271KD05JX - Varistor (Micro Commercial Components)
271KD05NX - Varistor (Micro Commercial Components)
271KD07 - Metal Oxide Varistors (BrightKing)
271KD07J - Metal Oxide Varistors (BrightKing)
271KD07JX - Varistor (Micro Commercial Components)
271KD07NX - Varistor (Micro Commercial Components)

Other Datasheets by STMicroelectronics

27128 - NMOS 128K 16K x 8 UV EPROM

Full PDF Text Transcription

Click to expand full text

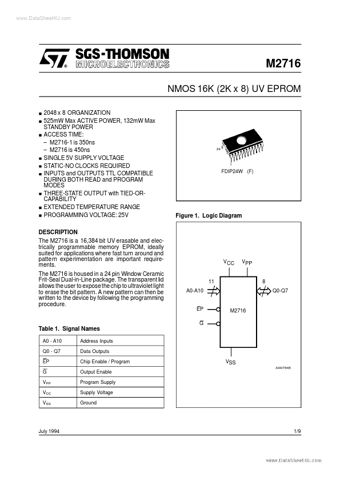

www.DataSheet4U.com M2716 NMOS 16K (2K x 8) UV EPROM 2048 x 8 ORGANIZATION 525mW Max ACTIVE POWER, 132mW Max STANDBY POWER ACCESS TIME: – M2716-1 is 350ns – M2716 is 450ns SINGLE 5V SUPPLY VOLTAGE STATIC-NO CLOCKS REQUIRED INPUTS and OUTPUTS TTL COMPATIBLE DURING BOTH READ and PROGRAM MODES THREE-STATE OUTPUT with TIED-ORCAPABILITY EXTENDED TEMPERATURE RANGE PROGRAMMING VOLTAGE: 25V DESCRIPTION The M2716 is a 16,384 bit UV erasable and electrically programmable memory EPROM, ideally suited for applications where fast turn around and pattern experimentation are important requirements. The M2716 is housed in a 24 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern.

Published: Oct 26, 2007 |
