29F200BB Datasheet - STMicroelectronics

29F200BB M29F200BB

The M29F200B is a 2 Mbit (256Kb x8 or 128Kb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F200B is fully b.

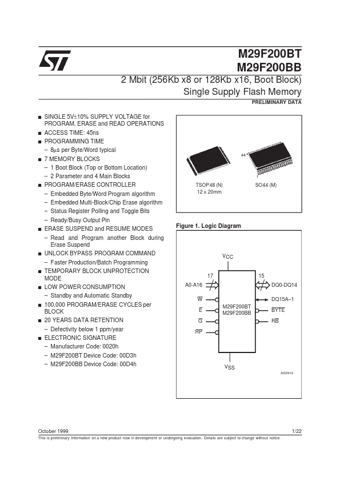

M29F200BT M29F200BB 2 Mbit (256Kb x8 or 128Kb x16, Boot Block) Single Supply Flash Memory PRELIMINARY DATA s SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS s ACCESS TIME: 45ns s PROGRAMMING TIME 8µs per Byte/Word typical s 7 MEMORY BLOCKS 1 Boot Block (Top or Bottom Location) 2 Parameter and 4 Main Blocks s PROGRAM/ERASE CONTROLLER Embedded Byte/Word Program algorithm Embedded Multi-Block/Chip Erase algorithm Statu.

29F200BB Features

* ns (Read, Program, Erase etc.). The Command Interface is disabled when the VCC Supply Voltage is less than the Lockout Voltage, VLKO. This prevents

29F200BB-STMicroelectronics.pdf

Preview of 29F200BB PDF
29F200BB Datasheet Preview Page 2 29F200BB Datasheet Preview Page 3

Datasheet Details
