3NV04D, VNS3NV04D

® VNS3NV04D “OMNIFET II”: FULLY AUTOPROTECTED POWER MOSFET TYPE RDS(on) VNS3NV04D 120 mΩ ( *) Ilim 3.5 A ( *) Vclamp 40 V ( *) ( *)P.
OThe VNS3NV04D is a device formed by two -monolithic OMNIFET II chips housed in a )standard SO-8 package.

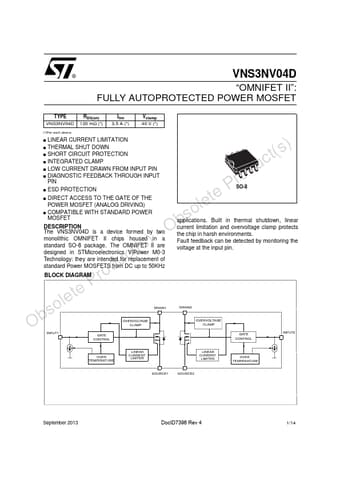

datasheet Preview Page 1 from Datasheet4u.com

3NV04D_STMicroelectronics.pdf

3NV04D Datasheet Preview — Preview of 3NV04D PDF

Datasheet Details

Part number:

3NV04D

Manufacturer:

STMicroelectronics ↗

File Size:

242.03 KB

Description:

VNS3NV04D

Features

* - OVERTEMPERATURE AND SHORT CIRCUIT During normal operation, the INPUT pin is electrically connected to the gate of the internal power MOSFET through a low impedance path. PROTECTION: these are based on sensing the chip temperature and are not dependent on the input voltage. The location of the s

Applications

* Built in thermal shutdown, linear current limitation and overvoltage clamp protects the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin. lete P DRAIN1 bso OVERVOLTAGE O CLAMP DRAIN2 OVERVOLTAGE CLAMP INPUT1 GATE CONTROL GATE CONTROL INPUT2
