74ACT158

QUAD 2 CHANNEL MULTIPLEXER

STMicroelectronics

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	74ACT158SJX	IC MULTIPLEXER 4 X 2:1 16-PDIP	DigiKey	0	6000 units	$0.56	🛒 Buy Now

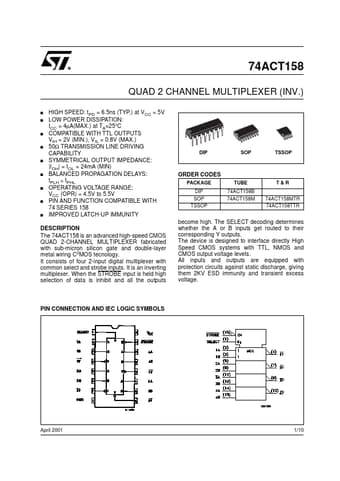

74ACT158 Datasheet (221.46 KB)

74ACT158 Datasheet Preview — Preview of 74ACT158 PDF

Datasheet Details

Part number:

74ACT158

Manufacturer:

STMicroelectronics ↗

File Size:

221.46 KB

Description:

Quad 2 channel multiplexer.
74ACT158 QUAD 2 CHANNEL MULTIPLEXER (INV.) s HIGH SPEED: tPD = 6.5ns (TYP.) at VCC = 5V s LOW POWER DISSIPATION: ICC = 4µA(MAX.) at TA=25°C s COMPAT.

74ACT158 General Description

The 74ACT158 is an advanced high-speed CMOS QUAD 2-CHANNEL MULTIPLEXER fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology. It consists of four 2-input digital multiplexer with common select and strobe inputs. It is an inverting multiplexer. When the STROBE input is.
