74ACT273 OCTAL D-TYPE FLIP-FLOP

The ACT273 is a high-speed CMOS OCTAL D-TYPE FLIP FLOP WITH CLEAR fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power applications mantaining high speed operation similar to equivalent Bipolar Schottky TTL. Information signals applied to.

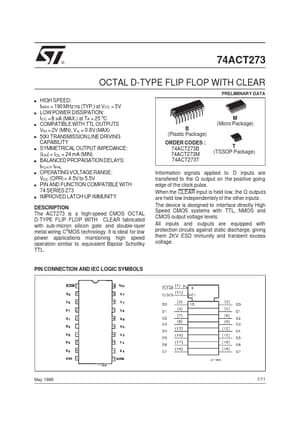

® 74ACT273 OCTAL D-TYPE FLIP FLOP WITH CLEAR PRELIMINARY DATA s s s s s s s s s HIGH SPEED: fMAX = 190 MHz ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 8 µA (MAX.) at TA = 25 oC COMPATIBLE WITH TTL OUTPUTS VIH = 2V (MIN), VIL = 0.8V (MAX) 50Ω TRANSMISSION LINE DRIVING CAPABILITY SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24 mA (MIN) BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC (OPR) = 4.5V to 5.5V PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 273 IMPROVED .
