7812CV

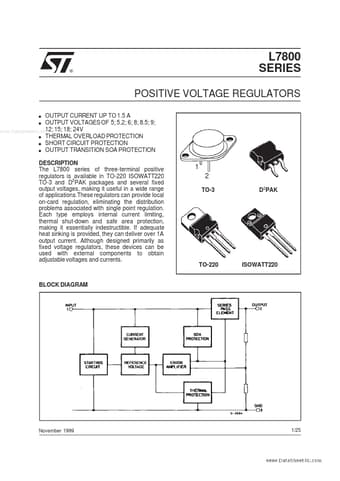

DESCRIPTION
The L7800 series of three-terminal positive regulators is available in TO-220 ISOWATT220 TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external ponents to obtain adjustable voltages and currents.
1 2
TO-3 D2PAK
TO-220
ISOWATT220
BLOCK DIAGRAM
November 1999
1/25
L7800
ABSOLUTE MAXIMUM RATINGS
Symbol Vi Io P tot T op T st g
..
Parameter DC Input Voltage (for VO = 5 to 18V) (for V O = 20, 24V) Output Current Power Dissipation Operating Junction Temperature Range (for L7800) (for L7800C)...
