78L08AB, 78L05ABUTR - POSITIVE VOLTAGE REGULATORS

STMicroelectronics

Datasheet Details

Part number	78L08AB, 78L05ABUTR
Manufacturer	STMicroelectronics ↗
File Size	814.12 KB
Description	POSITIVE VOLTAGE REGULATORS
Datasheet	78L05ABUTR_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: 78L08AB, 78L05ABUTR. Please refer to the document for exact specifications by model.

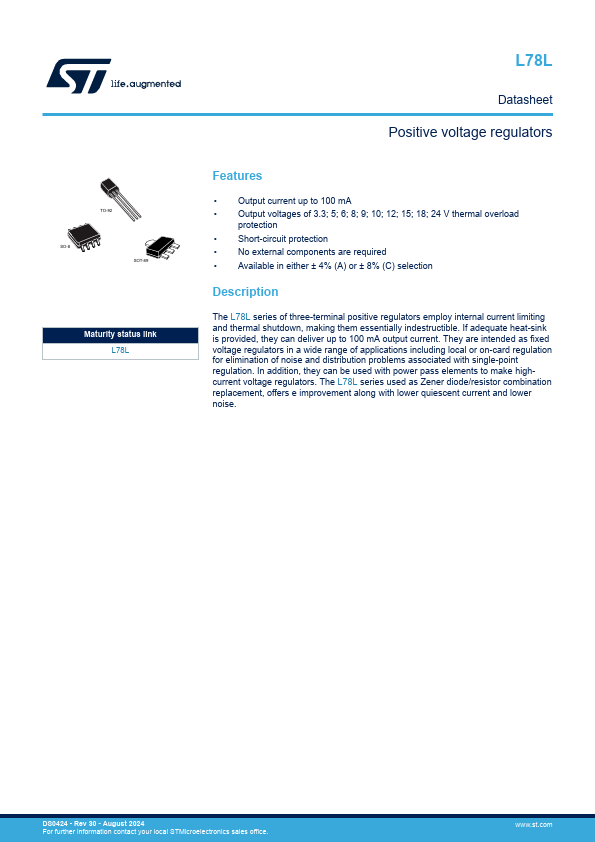

The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible.

Output current up to 100 mA.
Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V thermal overload protection.
Short-circuit protection.
No external components are required.
Available in either ± 4% (A) or ± 8% (C) selection.
