78M06C

POSITIVE VOLTAGE REGULATORS

78M06C Features

* Output current to 0.5 A

* Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V

* Thermal overload protection

* Short circuit protection

* Output transition SOA protection

* Output voltage tolerance: 2% (AB and AC versions) or 4% (C version)

* Guar

78M06C General Description

The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associ.

78M06C Datasheet (1.05 MB)

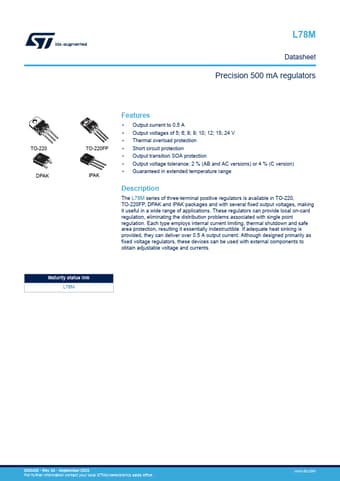

Preview of 78M06C PDF

Datasheet Details

Part number:

78M06C

Manufacturer:

STMicroelectronics ↗

File Size:

1.05 MB

Description:

Positive voltage regulators.
