A2F12M12W2-F1

SiC Power MOSFET

A2F12M12W2-F1 Features

* ACEPACK 2

* Fourpack topology

* ACEPACK 2 power module

* 13 mΩ of typical RDS(on) each switch

* Insulation voltage UL certified of 2.5 kVrms

* Integrated NTC temperature sensor

* DBC Cu-Al2O3-Cu based

* Press-fit contact pins DC+ DC+ G1 G

A2F12M12W2-F1 General Description

This ACEPACK 2 power module in fourpack topology integrates advanced silicon carbide Power MOSFET technology from STMicroelectronics. The module leverages the innovative properties of the wide-bandgap SiC material and a high-thermalperformance substrate. The result is exceptionally low on-resistance.

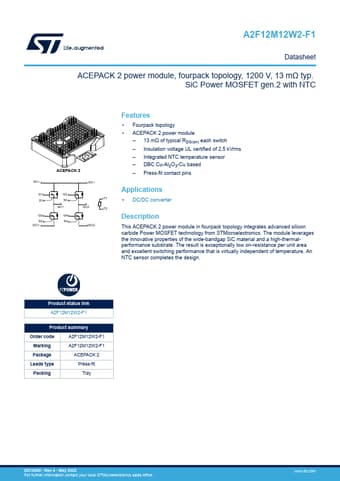

A2F12M12W2-F1 Datasheet (550.83 KB)

Preview of A2F12M12W2-F1 PDF

Datasheet Details

Part number:

A2F12M12W2-F1

Manufacturer:

STMicroelectronics ↗

File Size:

550.83 KB

Description:

Sic power mosfet.
