AVS20 AUTOMATIC VOLTAGE SWITCH SMPS < 300W

The AVS20 (AVS200) kit is an automatic mains selector (120/230V AC) to be used in SMPS with input power < 300 W. It is composed of 2 devices : * The Controller is optimized for low consumption and high security triggering of the triac. When connected to VSS, the mode input activates an addit.

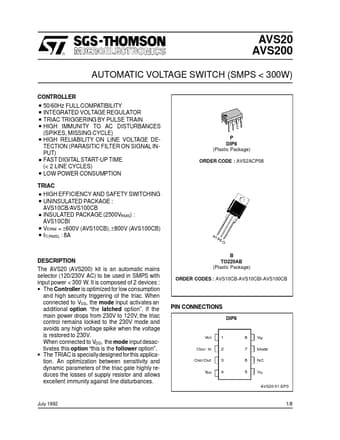

AVS20 AVS200 AUTOMATIC VOLTAGE SWITCH (SMPS < 300W) TRIAC HIGH EFFICIENCY AND SAFETY SWITCHING UNINSULATED PACKAGE : AVS10CB/AVS100CB INSULATED PACKAGE (2500VRMS) : AVS10CBI VDRM = ±600V (AVS10CB), ±800V (AVS100CB) IT(RMS) : 8A . . . . . . . . . . . . CONTROLLER 50/60Hz FULL COMPATIBILITY INTEGRATED VOLTAGE REGULATOR TRIAC TRIGGERING BY PULSE TRAIN HIGH IMMUNITY TO AC DISTURBANCES (SPIKES, MISSING CYCLE) HIGH RELIABILITY ON LINE VOLTAGE DETECTION (PARASITIC FILTER ON SIGNAL INPUT) FAST DIGITA.
