BTA08-600B - logic level and standard 8A Triacs

This page provides the datasheet information for the BTA08-600B, a member of the BTA08 logic level and standard 8A Triacs family.

Datasheet Summary

Description

Available either in through-hole and surfacemount packages, these devices are suitable for general purpose AC switching.

Features

On-state rms current, IT(RMS) 8 A.
Repetitive peak off-state voltage, VDRM / VRRM 600 V to 800 V.
Triggering gate current, IGT (Q1) 5 to 50 mA.

Datasheet Details

Part number	BTA08-600B
Manufacturer	STMicroelectronics
File Size	276.84 KB
Description	logic level and standard 8A Triacs
Datasheet	BTA08-600B Datasheet

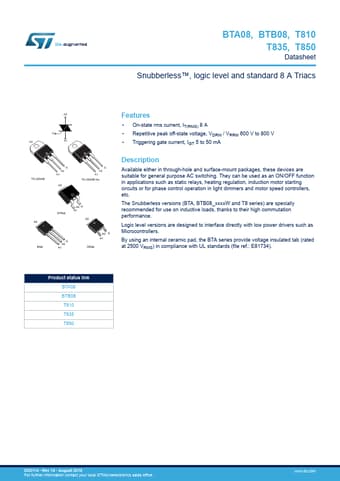

Additional preview pages of the BTA08-600B datasheet.

📁 Similar Datasheet

BTA08-600B - Triac (INCHANGE)

BTA08-600B - Triacs (HAOPIN)

BTA08-600BW - Three quadrant triacs (HAOPIN)

BTA08-600BW - Triac (INCHANGE)

BTA08-600BW3G - Triacs (ON Semiconductor)

BTA08-600 - Triac (CDIL)

BTA08-600 - Triac (INCHANGE)

BTA08-600A - Triacs (Inchange Semiconductor)

BTA08-600C - Triacs (HAOPIN)

BTA08-600C - Triacs (Inchange Semiconductor)

Full PDF Text Transcription

Click to expand full text

BTA08, BTB08, T810, T835, T850 Snubberless™, logic level and standard 8 A Triacs Datasheet - production data Features  On-state rms current, IT(RMS) 8 A  Repetitive peak off-state voltage, VDRM / VRRM 600 V to 800 V  Triggering gate current, IGT (Q1) 5 to 50 mA Description Available either in through-hole and surfacemount packages, these devices are suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers and motor speed controllers, etc. The Snubberless versions (BTA, BTB08_xxxxW and T8 series) are specially recommended for use on inductive loads, thanks to their high commutation performance.
