BTA24-600B

25A Triacs

BTA24-600B Features

* High current 25 A RMS current Triac

* Low thermal resistance

* High commutation (4 quadrants) or very high commutation (3 quadrants) capability

* BTA series UL1557 recognized components (file ref: 81734)

* RoHS (2002/95/EC) compliant packages

* UL-94

BTA24-600B General Description

Available either in through-hole or surface-mount packages, the BTA24, BTB24 and T25 are suitable for general purpose AC switching. Product status link BTA24 TO-220AB insulated package BTB24 TO-220AB uninsulated package T25 D²PAK package Product summary BTA24 BTB24 T25 IT(RMS) VDRM/VRRM 2.

BTA24-600B Datasheet (271.74 KB)

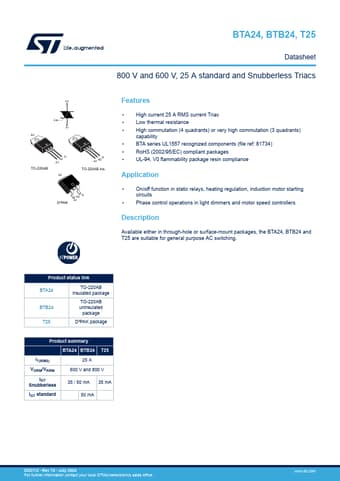

Preview of BTA24-600B PDF

Datasheet Details

Part number:

BTA24-600B

Manufacturer:

STMicroelectronics ↗

File Size:

271.74 KB

Description:

25a triacs.
BTA24, BTB24, T25 Datasheet 800 V and 600 V, 25 A standard and Snubberless Triacs A2 G A1 A2 TO-220AB G A2 A1 A2 G A1 A2 TO-220AB Ins. D²PAK A2 .
