BZW04-33B Datasheet - STMicroelectronics

Transil diodes

BZW04-33B Features

* Peak pulse power:

* 400 W (10/1000 μs)

* up to 2.3 kW (8/20 μs)

* Stand-off voltage range from 5.8 V to 376 V

* Unidirectional and bidirectional types

* Operating Tj max: 175 °C

* High power capability at Tj max.: up to 230 W (10/1000 µs)

BZW04-33B General Description

The BZW04 TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 400 W 10/1000 μs. This planar technology makes it compatible wit.

BZW04-33B Datasheet (517.07 KB)

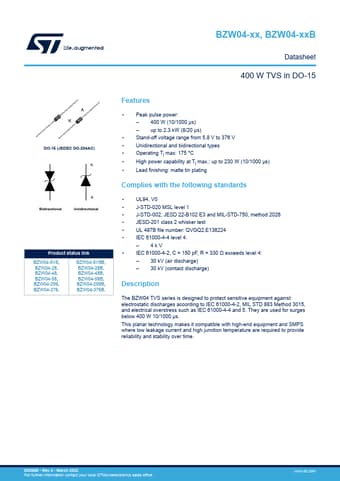

Preview of BZW04-33B PDF

Datasheet Details

Part number:

BZW04-33B

Manufacturer:

STMicroelectronics ↗

File Size:

517.07 KB

Description:

Transil diodes.
BZW04-xx, BZW04-xxB Datasheet 400 W TVS in DO-15 A K DO-15 (JEDEC DO-204AC) K Bidirectional A Unidirectional Product status link BZW04-5V8, BZW04.
