Part number:
CLT01-38SQ7
Manufacturer:
File Size:
691.34 KB
Description:
High speed digital input current limiter.

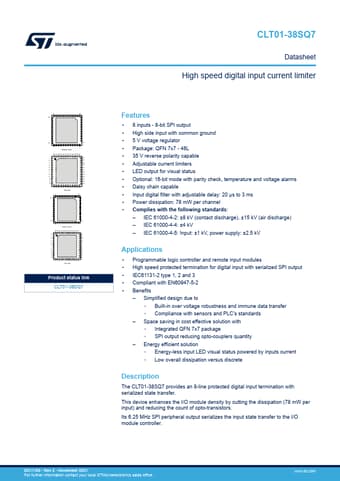

CLT01-38SQ7, High speed digital input current limiter
The CLT01-38SQ7 provides an 8-line protected digital input termination with serialized state transfer.
This device enhances the I/O module density by cutting the dissipation (78 mW per input) and reducing the count of opto-transistors.
Its 6.25 MHz SPI peripheral output serializes the input state tr
CLT01-38SQ7 Datasheet High speed digital input current limiter 37 36 48 1 25 24 Bottom view 12 13 48 47 46 45 44 43 42 41 40 39 38 37 1 36 2 35 3 34 4 33 5 32 6 31 7 30 8 29 9 28 10 27 11 26 12 25 13 14 15 16 17 18 19 20 21 22 23 24 Top view 37 36 48 1 25 24 Bottom view 12 13 48 47 46 45 44 43 42 41 40 39 38 37 1 36 2 35 3 34 4 33 5 32 6 31 7 30 8 29 9 28 10 27 11 26 12 25 13 14 15 16 17 18 19 20 21 22 23 24 Top view Product status l
CLT01-38SQ7 Features
* 8 inputs - 8-bit SPI output
* High side input with common ground
* 5 V voltage regulator
* Package: QFN 7x7 - 48L
* 35 V reverse polarity capable
* Adjustable current limiters
* LED output for visual status
* Optional: 16-bit mode wit
