DAP005 - Advanced transition-mode PFC controller

General Description

.

.

.

.

.

Key Features

  • Advanced transition-mode PFC controller Custom Data.
  • Transition-mode control of PFC pre-regulators.
  • Very precise adjustable output overvoltage protection.
  • Tracking boost function.
  • Protection against feedback loop failure (Latched shutdown).
  • Interface for cascaded converter's PWM controller.
  • Input voltage feedforward (1/V2).
  • AC brownout protection.
  • Low (≤ 90µA) start-up current.
  • < 5mA quiescent current.
  • 1.4% (@ TJ = 25°C) internal reference volt.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DAP006 PWM Controller ON Semiconductor
DAP008 PWM Current-Mode Controller ON Semiconductor
DAP00xx Attenuators / Digital High Reliablity Aeroflex
DAP011 PWM Controller ON Semiconductor
DAP011C PWM Controller ON Semiconductor

Other Datasheets by STMicroelectronics

Part Number Description
DAP002 PRIMARY CONTROLLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

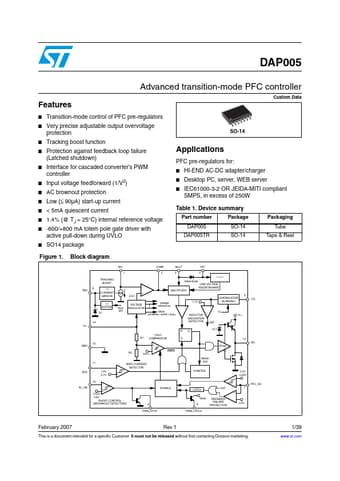

DAP005 Features Advanced transition-mode PFC controller Custom Data ■ Transition-mode control of PFC pre-regulators ■ Very precise adjustable output overvoltage protection ■ Tracking boost function ■ Protection against feedback loop failure (Latched shutdown) ■ Interface for cascaded converter's PWM controller ■ Input voltage feedforward (1/V2) ■ AC brownout protection ■ Low (≤ 90µA) start-up current ■ < 5mA quiescent current ■ 1.4% (@ TJ = 25°C) internal reference voltage ■ -600/+800 mA totem pole gate driver with active pull-down during UVLO ■ SO14 package SO-14 Applications PFC pre-regulators for: ■ HI-END AC-DC adapter/charger ■ Desktop PC, server, WEB server ■ IEC61000-3-2 OR JEIDA-MITI compliant SMPS, in excess of 250W Table 1.
