DVIULC6-4SC6Y - Automotive ultralow capacitance ESD protection

Name: DVIULC6-4SC6Y
SKU: DVIULC6-4SC6Y-1495664

STMicroelectronics

📥 Download Datasheet

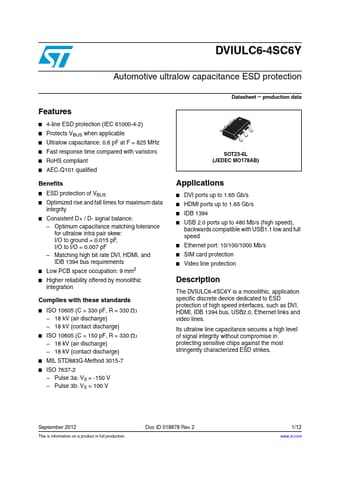

DVIULC6-4SC6Y Datasheet Preview — Preview of DVIULC6-4SC6Y PDF

Datasheet Details

Part number	DVIULC6-4SC6Y
Manufacturer	STMicroelectronics
File Size	198.17 KB
Description	Automotive ultralow capacitance ESD protection
Datasheet	DVIULC6-4SC6Y-STMicroelectronics.pdf

DVIULC6-4SC6Y Product details

Description

The DVIULC6-4SC6Y is a monolithic, application specific discrete device dedicated to ESD protection of high speed interfaces, such as DVI, HDMI, IDB 1394 bus, USB2.0, Ethernet links and video lines.

Features

4-line ESD protection (IEC 61000-4-2).
Protects VBUS when applicable.
Ultralow capacitance: 0.6 pF at F = 825 MHz.
Fast response time compared with varistors.
RoHS compliant.
AEC-Q101 qualified Benefits.
ESD protection of VBUS.
Optimized rise and fall times for maximum data integrity.
Consistent D+ / D- signal balance:.
Optimum capacitance matching tolerance for ultralow intra pair skew: I/O to ground = 0.015 pF, I/O to I/O = 0.007 pF.
