ECMF02-2HSMX6

EMI FILTER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics ECMF02-2HSMX6 CMC 100MA 2LN SMD ESD DigiKey 12000 21000 units
$0.22

ECMF02-2HSMX6 Datasheet (14.24 MB)

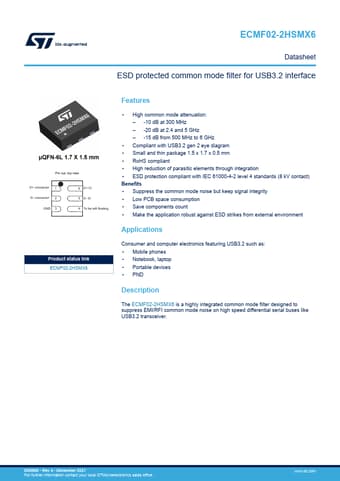

Preview of ECMF02-2HSMX6 PDF Datasheet

Datasheet Details

Part number:

ECMF02-2HSMX6

Manufacturer:

STMicroelectronics ↗

File Size:

14.24 MB

Description:

Emi filter.
ECMF02-2HSMX6 Datasheet ESD protected common mode filter for USB3.2 interface Pin out, top view D+ connector 1 D- connector 2 GND 3 6 D+ IC 5 D- IC.

ECMF02-2HSMX6 Features

* High common mode attenuation:

* -10 dB at 300 MHz

* -20 dB at 2.4 and 5 GHz

* -15 dB from 500 MHz to 6 GHz

* Compliant with USB3.2 gen 2 eye diagram

* Small and thin package 1.5 x 1.7 x 0.5 mm

* RoHS compliant

* High reduction of para

ECMF02-2HSMX6 General Description

The ECMF02-2HSMX6 is a highly integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed differential serial buses like USB3.2 transceiver. DS9863 - Rev 4 - December 2021 For further information contact your local STMicroelectronics sales office. www.st.com ECMF02-.
