EF6805U2 - 8-BIT MICROCOMPUTER UNIT

EF6805U2 Description

EF6805U3 8-BIT MICROCOMPUTER UNIT * * * *..HARDWARE .
The EF6805U3 Microcomputer Unit (MCU) is a member of the 6805 Family of low-cost single-chip Microcomputers.

EF6805U2 Features

* 32 TTL/CMOS COMPATIBLE I/O LINES 24 BIDIRECTIONAL (8 lines are LED compatible) 8 INPUT-ONLY 3776 BYTES OF USER ROM 112 BYTES OF RAM SELF-CHECK MODE ZERO-CROSSING DETECT/INTERRUPT INTERNAL 8-BIT TIMER WITH 7-BIT SOFTWARE PROGRAMMABLE PRESCALER AND CLOCK SOURCE 5V SINGLE SUPPLY SOFTWARE FEATURES 10 PO

EF6805U2 Applications

* PPORT PINT and can be neglected. PPORT may become significant if the device is configured to drive Darlington bases or sink LED loads. An approximate relationship between PD and TJ (if PPORT is neglected) is : PD = K + (TJ + 273C) (2) Solving equations 1 and 2 for K gives : K = PD. (TA + 273C) + JA. P

📥 Download Datasheet

Preview of EF6805U2 PDF

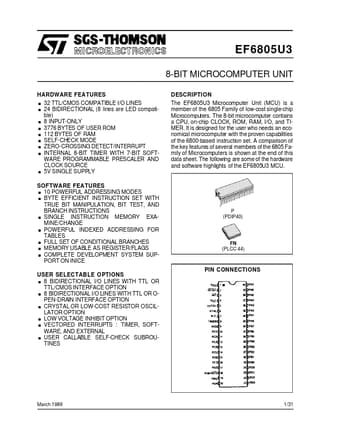

datasheet Preview Page 2 datasheet Preview Page 3
