G15M65DF2 Datasheet - STMicroelectronics

G15M65DF2, Trench gate field-stop IGBT

STGB15M65DF2 Trench gate field-stop IGBT M series, 650 V, 15 A low-loss in a D²PAK package Datasheet - production data TAB 2 3 1 D²PAK Figure 1: Int.
This device is an IGBT developed using an advanced proprietary trench gate field-stop structure.

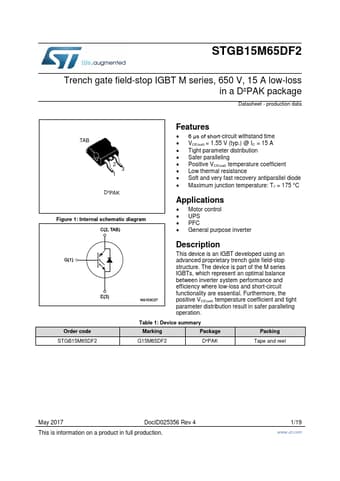

datasheet Preview Page 1 from Datasheet4u.com

G15M65DF2-STMicroelectronics.pdf

Preview of G15M65DF2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

G15M65DF2

Manufacturer:

STMicroelectronics ↗

File Size:

915.56 KB

Description:

Trench gate field-stop IGBT

Features

* 6 μs of short-circuit withstand time
* VCE(sat) = 1.55 V (typ. ) @ IC = 15 A
* Tight parameter distribution
* Safer paralleling
* Positive VCE(sat) temperature coefficient
* Low thermal resistance
* Soft and very fast recovery antiparallel diode
* Maximum junction te

Applications

* Motor control
* UPS
* PFC
