GM5862H, GM5868H - LCD monitor controllers

STMicroelectronics

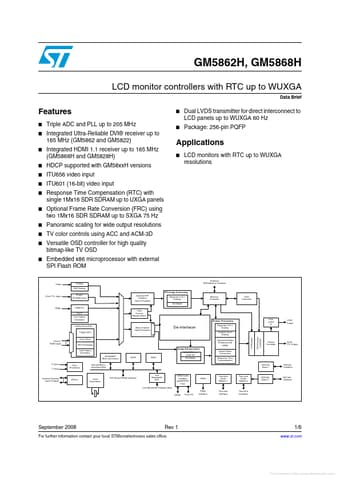

GM5862H Datasheet Preview — This datasheet PDF includes multiple part numbers: GM5862H, GM5868H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	GM5862H, GM5868H
Manufacturer	STMicroelectronics ↗
File Size	134.31 KB
Description	LCD monitor controllers
Datasheet	GM5868H_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: GM5862H, GM5868H. Please refer to the document for exact specifications by model.

GM5862H Product details

Description

GM5862H, GM5868H 1 Description The GM58xx family of controllers are highly integrated mixed signal LCD controllers with built-in panel RTC for LCD panels with slow grey-to-grey response time up to WUXGA resolutions.The integrated RTC only needs a single 1Mx16 SDR SDRAM to support a UXGA panel.In most cases, the grey-to-grey response time can be reduced as much as half of the native grey-to-grey response time.This depends on the characteristics of the target LCD panel.The GM58xx has integr

Features

Dual LVDS transmitter for direct interconnect to LCD panels up to WUXGA 60 Hz Package: 256-pin PQFP Triple ADC and PLL up to 205 MHz Integrated Ultra-Reliable DVI® receiver up to 165 MHz (GM5862 and GM5822) Integrated HDMI 1.1 receiver up to 165 MHz (GM5868H and GM5828H) HDCP supported with GM58xxH versions ITU656 video input ITU601 (16-bit) video input Response Time Compensation (RTC) with single 1Mx16 SDR SD.
