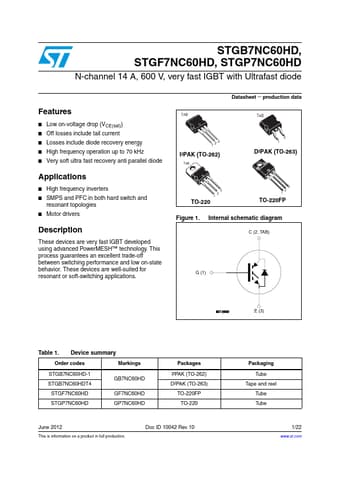

Description
These devices are very fast IGBT developed using advanced PowerMESH™ technology.
production data
TAB TAB
123
I²PAK (TO-262)
TAB
3 1
D²PAK (TO-263)
3 2 1
TO-220
3 2 1
TO-220FP
Figure 1. Internal schematic diagram
C (2, TAB)
G (1)
E (3)
Table 1. Device summary
Order codes
Markings
STGB7NC60
Features
- Low on-voltage drop (VCE(sat)).
- Off losses include tail current.
- Losses include diode recovery energy.
- High frequency operation up to 70 kHz.
- Very soft ultra fast recovery anti parallel diode.
