HCF4503

HEX BUFFER

STMicroelectronics

HCF4503 General Description

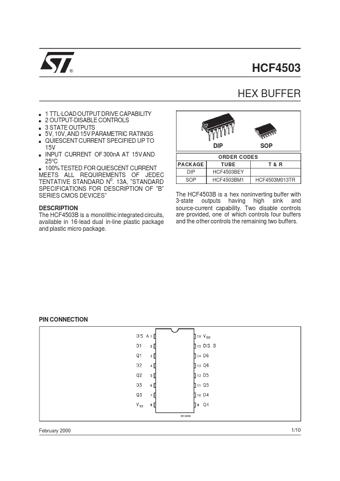

OF ”B” SERIES CMOS DEVICES” s s DIP ORDER CODES PACKAGE DIP SOP TUBE HCF4503BEY HCF4503BM1 SOP T& R HCF4503M013TR DESCRIPTION The HCF4503B is a monolithic integrated circuits, available in 16-lead dual in-line plastic package and plastic micro package. The HCF4503B is a hex noninverting buffer w.

HCF4503 Datasheet (85.30 KB)

HCF4503 Datasheet Preview — Preview of HCF4503 PDF

Datasheet Details

Part number:

HCF4503

Manufacturer:

STMicroelectronics ↗

File Size:

85.30 KB

Description:

Hex buffer.
® HCF4503 HEX BUFFER 1 TTL-LOAD OUTPUT DRIVE CAPABILITY 2 OUTPUT-DISABLE CONTROLS s 3 STATE OUTPUTS s 5V, 10V, AND 15V PARAMETRIC RATINGS s QUIESCEN.
