IRF540, N-Channel Power MOSFET

IRF540 N-CHANNEL 100V - 0.055 Ω - 22A TO-220 LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE VDSS RDS(on) IRF540 100 V <0.077 Ω s TYPICAL RDS(on).
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

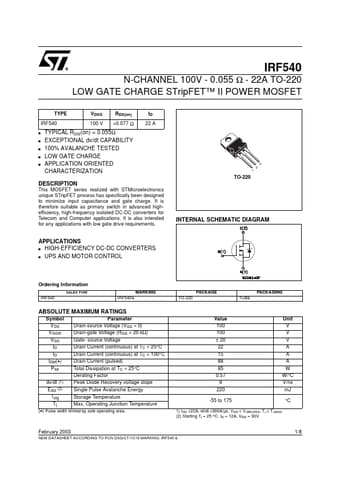

datasheet Preview Page 1 from Datasheet4u.com

IRF540_STMicroelectronics.pdf

IRF540 Datasheet Preview — Preview of IRF540 PDF

Datasheet Details

Part number:

IRF540

Manufacturer:

STMicroelectronics ↗

File Size:

294.40 KB

Description:

N-Channel Power MOSFET

Applications

* It is also intended for any applications with low gate drive requirements. 3 2 1 TO-220 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL Ordering Information IRF540 SALES TYPE MARKING IRF540& PACKAGE TO-220 PACKAGING TUBE ABSOLUTE MAXIMUM R
