JSR2907

PNP Transistor

JSR2907 Datasheet (360.80 KB)

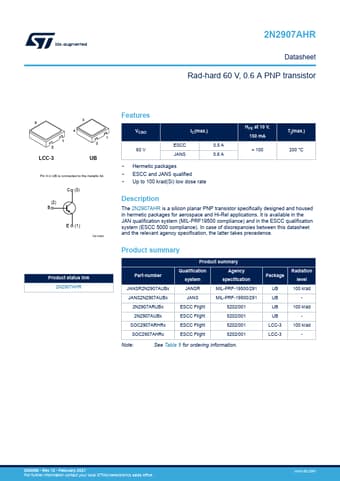

Preview of JSR2907 PDF

Datasheet Details

Part number:

JSR2907

Manufacturer:

STMicroelectronics ↗

File Size:

360.80 KB

Description:

Pnp transistor.
2N2907AHR Datasheet Rad-hard 60 V, 0.6 A PNP transistor 3 1 2 LCC-3 3 4 1 2 UB Pin 4 in UB is connected to the metallic lid. C (3) (2) B E (1) .

JSR2907 Features

* VCBO IC(max.) 60 V ESCC JANS 0.5 A 0.6 A

* Hermetic packages

* ESCC and JANS qualified

* Up to 100 krad(Si) low dose rate HFE at 10 V, 150 mA > 100 Tj(max.) 200 °C Description The 2N2907AHR is a silicon planar PNP transistor specifically designed and housed in hermet

JSR2907 General Description

The 2N2907AHR is a silicon planar PNP transistor specifically designed and housed in hermetic packages for aerospace and Hi-Rel applications. It is available in the JAN qualification system (MIL-PRF19500 compliance) and in the ESCC qualification system (ESCC 5000 compliance). In case of discrepancie.
