L3235 - HIGHLY INTEGRATED SLIC KIT TARGETED TO PABX AND KEY SYSTEM APPLICATIONS

STMicroelectronics

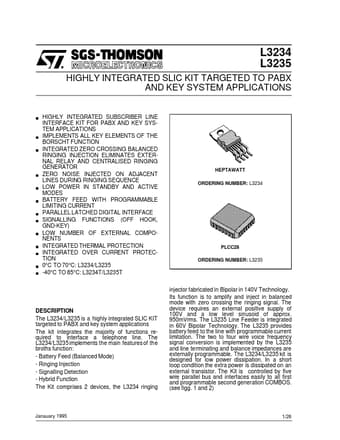

L3235 Datasheet Preview — Preview of L3235 PDF

Datasheet Details

Part number	L3235
Manufacturer	STMicroelectronics ↗
File Size	457.05 KB
Description	HIGHLY INTEGRATED SLIC KIT TARGETED TO PABX AND KEY SYSTEM APPLICATIONS
Datasheet	L3235_STMicroelectronics.pdf

L3235 Product details

Description

The L3234/L3235 is a highly integrated SLIC KIT targeted to PABX and key system applications The kit integrates the majority of functions required to interface a telephone line.

Features

of the broths function: - Battery Feed (Balanced Mode) - Ringing Injection - Signalling Detection - Hybrid Function The Kit comprises 2 devices, the L3234 ringing injector fabricated in Bipolar in 140V Technology. Its function is to amplify and inject in balanced mode with zero crossing the ringing signal. The device requires an external positive supply of 100V and a low level sinusoid of approx. 950mVrms. The L3235 Line Feeder is integrated in 60V Bipolar Technology. The L3235 provides battery.
