L3GD20

MEMS motion sensor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L3GD20 IC MEMS MOTION SENSOR 16-LGA DigiKey 0 2940 units
$3.02

L3GD20 Datasheet (2.10 MB)

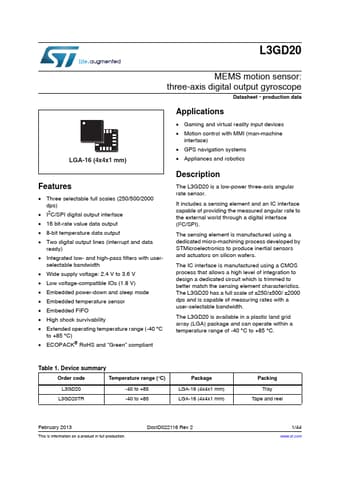

Preview of L3GD20 PDF Datasheet

Datasheet Details

Part number:

L3GD20

Manufacturer:

STMicroelectronics ↗

File Size:

2.10 MB

Description:

Mems motion sensor.
L3GD20 MEMS motion sensor: three-axis digital output gyroscope Datasheet - production data LGA-16 (4x4x1 mm) Applications

* Gaming and virt.

L3GD20 Features

* Three selectable full scales (250/500/2000 dps)

* 2 I C/SPI digital output interface

* 16 bit-rate value data output

* 8-bit temperature data output

* Two digital output lines (interrupt and data ready)

* Integrated low- and high-pass filter

L3GD20 General Description

The L3GD20 is a low-power three-axis angular rate sensor. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI). The sensing element is manufactured using a dedicated micro-machining process develo.
