L4902A - DUAL 5V REGULATOR WITH RESET AND DISABLE

Datasheet Summary

Description

The L4902A is a monolithic low drop dual 5V regulator designed mainly for supplying microprocessor systems.

Reset and data save functions and remote switch on/off control can be realized.

Features

  • : - 5V internal reference without voltage divider between the output and the error comparator - very low drop series regulator element utilizing current mirrors permit high output impedance and then very low leakage current even in power down condition. 4/9 L4902A This output may thereforebe usedto supply circuits continuously, such as volatile RAMs, allowing the use of a back-up battery. The V02 output can supply other non essential 5 V circuits which may be powered down when the system is in.

📥 Download Datasheet

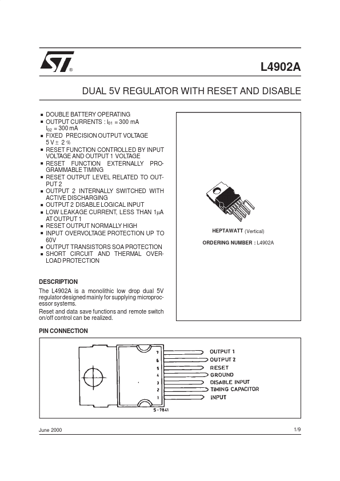

Datasheet preview – L4902A

Datasheet Details

Part number L4902A
Manufacturer STMicroelectronics
File Size 113.28 KB
Description DUAL 5V REGULATOR WITH RESET AND DISABLE
Datasheet download datasheet L4902A Datasheet
Additional preview pages of the L4902A datasheet.

📁 Similar Datasheet

  • L4937 - Dual Low Drop Fixed Output Linear Regulator (ETC)
  • L493EC - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493GC - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493GT - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493IT - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493YC - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L493YT - T-1 3/4 (5mm) CYLINDRICAL LED LAMPS (ETC)
  • L4945 - (L4945 - L4951) 5V/8.5V/10V VERY LOW DROP VOLTAGE REGULATORS (SGS-THOMSON)
  • L4949 - MULTIFUNCTION VERY LOW DROPOUT VOLTAGE REGULATOR (Motorola Inc)
  • L4949 - Low Dropout Voltage Regulator (ON Semiconductor)
Other Datasheets by STMicroelectronics
  • L4901A - DUAL 5V REGULATOR WITH RESET
  • L4903 - DUAL 5V REGULATOR WITH RESET AND DISABLE FUNCTIONS
  • L4904A - DUAL 5V REGULATOR WITH RESET
  • L4909 - EXTERNALLY ADJUSTABLE MULTIFUNCTION REGULATOR
  • L4915 - ADJUSTABLE VOLTAGE REGULATOR PLUS FILTER
  • L4916 - VOLTAGE REGULATOR PLUS FILTER
  • L4918 - VOLTAGE REGULATORS PLUS FILTER
  • L4920 - VERY LOWDROP ADJUSTABLE REGULATORS

Full PDF Text Transcription

Click to expand full text
® L4902A DUAL 5V REGULATOR WITH RESET AND DISABLE . . . . . . . . . . . . . DOUBLE BATTERY OPERATING OUTPUT CURRENTS : I01 = 300 mA I02 = 300 mA FIXED PRECISION OUTPUT VOLTAGE 5V± 2% RESET FUNCTION CONTROLLED BY INPUT VOLTAGE AND OUTPUT 1 VOLTAGE RESET FUNCTION EXTERNALLY PROGRAMMABLE TIMING RESET OUTPUT LEVEL RELATED TO OUTPUT 2 OUTPUT 2 INTERNALLY SWITCHED WITH ACTIVE DISCHARGING OUTPUT 2 DISABLE LOGICAL INPUT LOW LEAKAGE CURRENT, LESS THAN 1µA AT OUTPUT 1 RESET OUTPUT NORMALLY HIGH INPUT OVERVOLTAGE PROTECTION UP TO 60V OUTPUT TRANSISTORS SOA PROTECTION SHORT CIRCUIT AND THERMAL OVERLOAD PROTECTION HEPTAWATT (Vertical) ORDERING NUMBER : L4902A DESCRIPTION The L4902A is a monolithic low drop dual 5V regulator designed mainly for supplying microprocessor systems.
