L6219R

Stepper motor driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L6219R IC MTR DRV BIPLR 4.75-5.25V 24SO DigiKey 0 800 units
$2.27

L6219R Datasheet (204.22 KB)

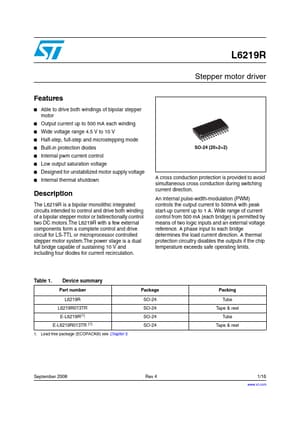

Preview of L6219R PDF

Datasheet Details

Part number:

L6219R

Manufacturer:

STMicroelectronics ↗

File Size:

204.22 KB

Description:

Stepper motor driver.

L6219R Features

* Able to drive both windings of bipolar stepper motor

* Output current up to 500 mA each winding

* Wide voltage range 4.5 V to 10 V

* Half-step, full-step and microstepping mode

* Built-in protection diodes

* Internal pwm current control

* Low output saturation voltage

L6219R General Description

The L6219R is a bipolar monolithic integrated circuits intended to control and drive both winding of a bipolar stepper motor or bidirectionally control two DC motors.The L6219R with a few external components form a complete control and drive circuit for LS-TTL or microprocessor controlled stepper mo.
