L6920DC Datasheet - STMicroelectronics

L6920DC Synchronous rectifier step up converter

The L6920DC is a high efficiency monolithic step up switching converter IC especially designed for battery powered application. Package is MSOP8 in order to minimize PCB space. It requires only three external components to realize the conversion from the battery voltage to the selected output voltag.

L6920DC Features

* 0.8V start up input voltage Up to 5.5V operating input voltage Internal synchronous rectifier Adjustable output voltage from 1.8V to 5.5V fixed output voltages Low battery voltage detection Reverse battery protection 550mA minimum input current limit Switching frequency up t

L6920DC_STMicroelectronics.pdf

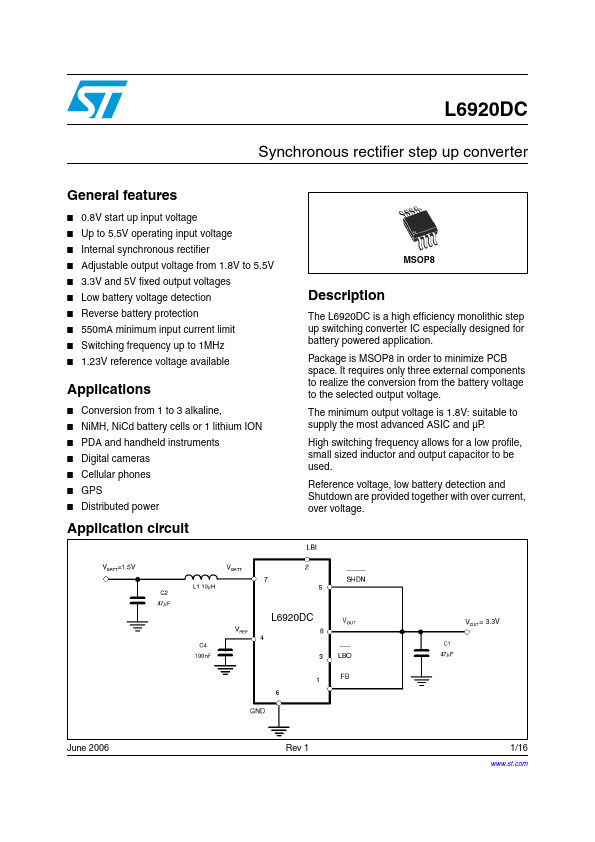

Preview of L6920DC PDF

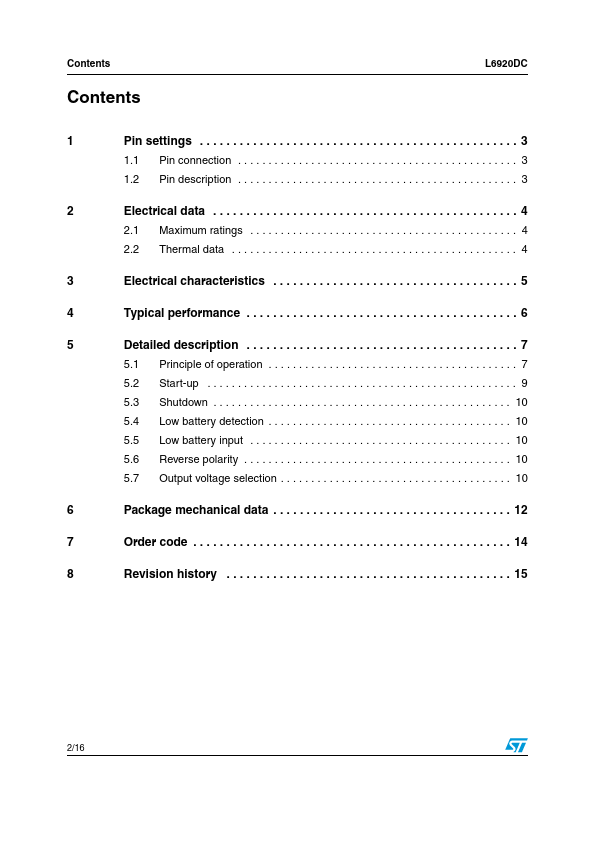

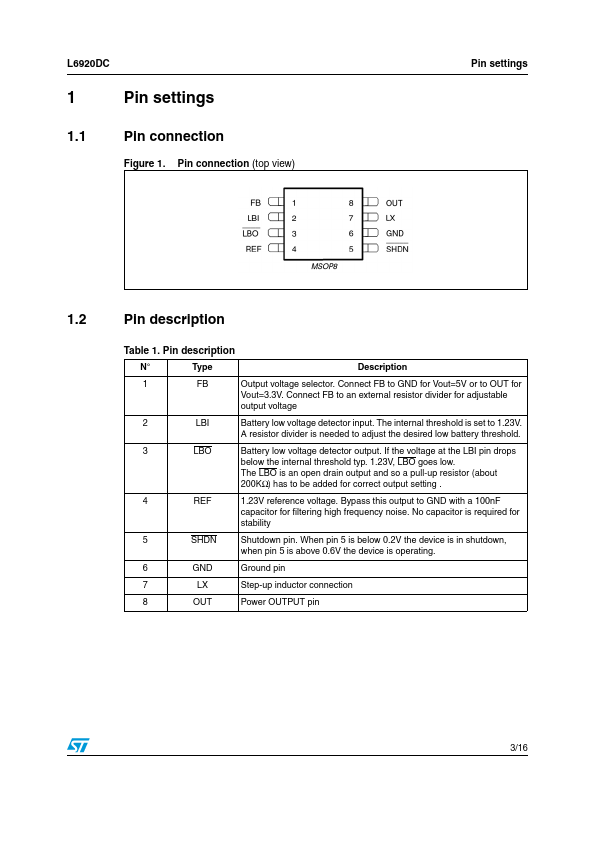

L6920DC Datasheet Preview Page 2 L6920DC Datasheet Preview Page 3

Datasheet Details

Part number:

L6920DC

Manufacturer:

STMicroelectronics ↗

File Size:

426.51 KB

Description:

Synchronous rectifier step up converter.
